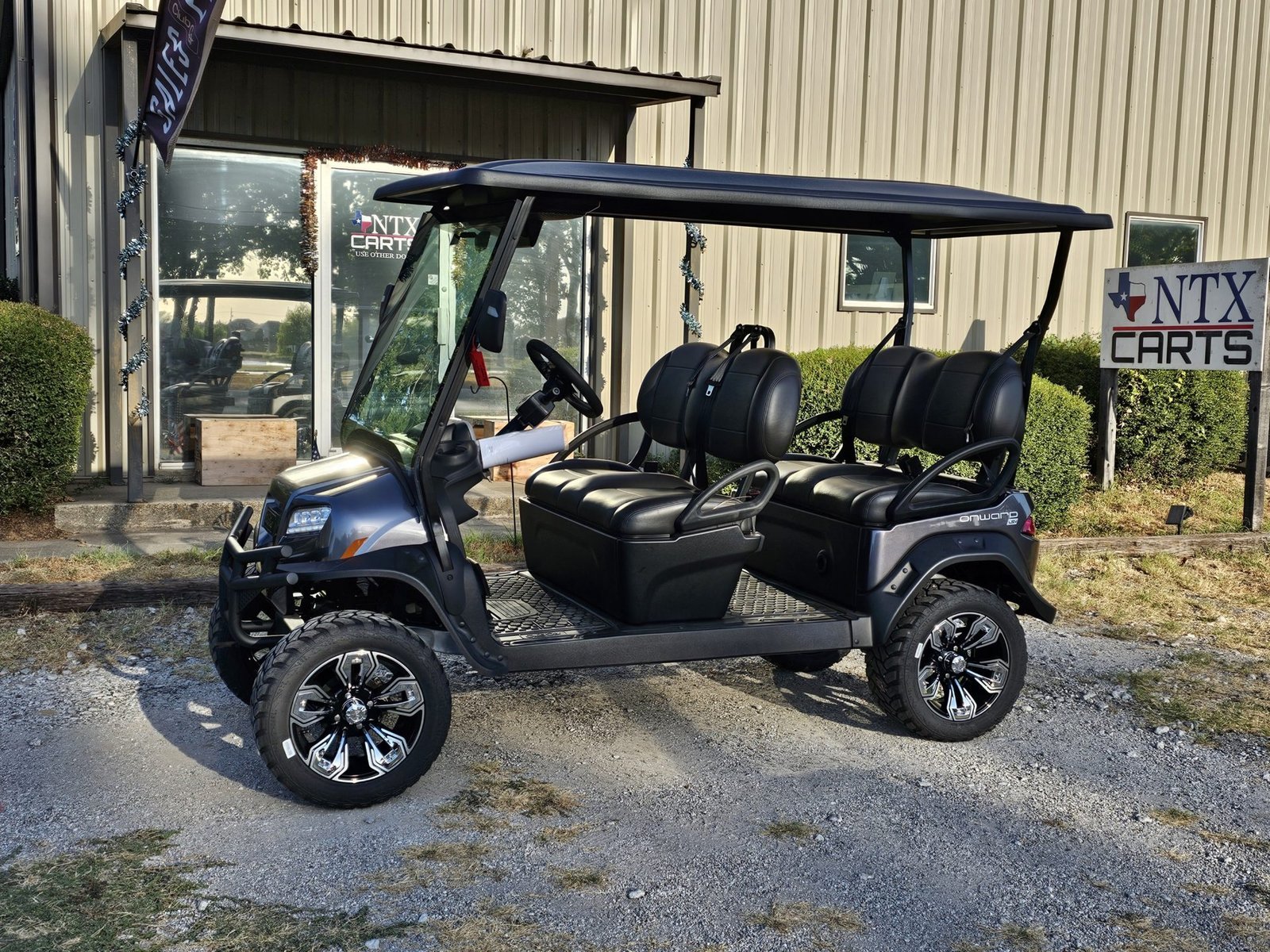

The 2027 Club Car Onward 4 Forward LSV for sale represents a significant step beyond a conventional personal golf cart. Designed specifically as a Low Speed Vehicle, this four-passenger Club Car combines two rows of forward-facing seats with lithium electric performance, a 25 mph maximum speed, automotive-style safety equipment, connected infotainment, and the elevated stance of a lifted Onward.

The seller-supplied equipment strongly matches Club Car’s current factory Onward 4 Forward LSV configuration, including three-point seat belts in both rows, reinforced occupant rollover protection, four-wheel hydraulic disc brakes, electronic park brake, DOT glass windshield, backup camera, dual displays, Apple CarPlay and Android Auto, and additional rear cargo storage.

2027 Club Car Onward 4 Forward LSV for Sale

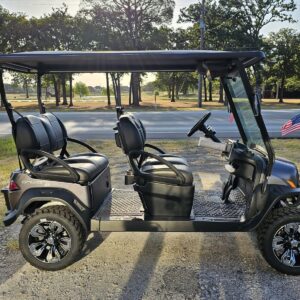

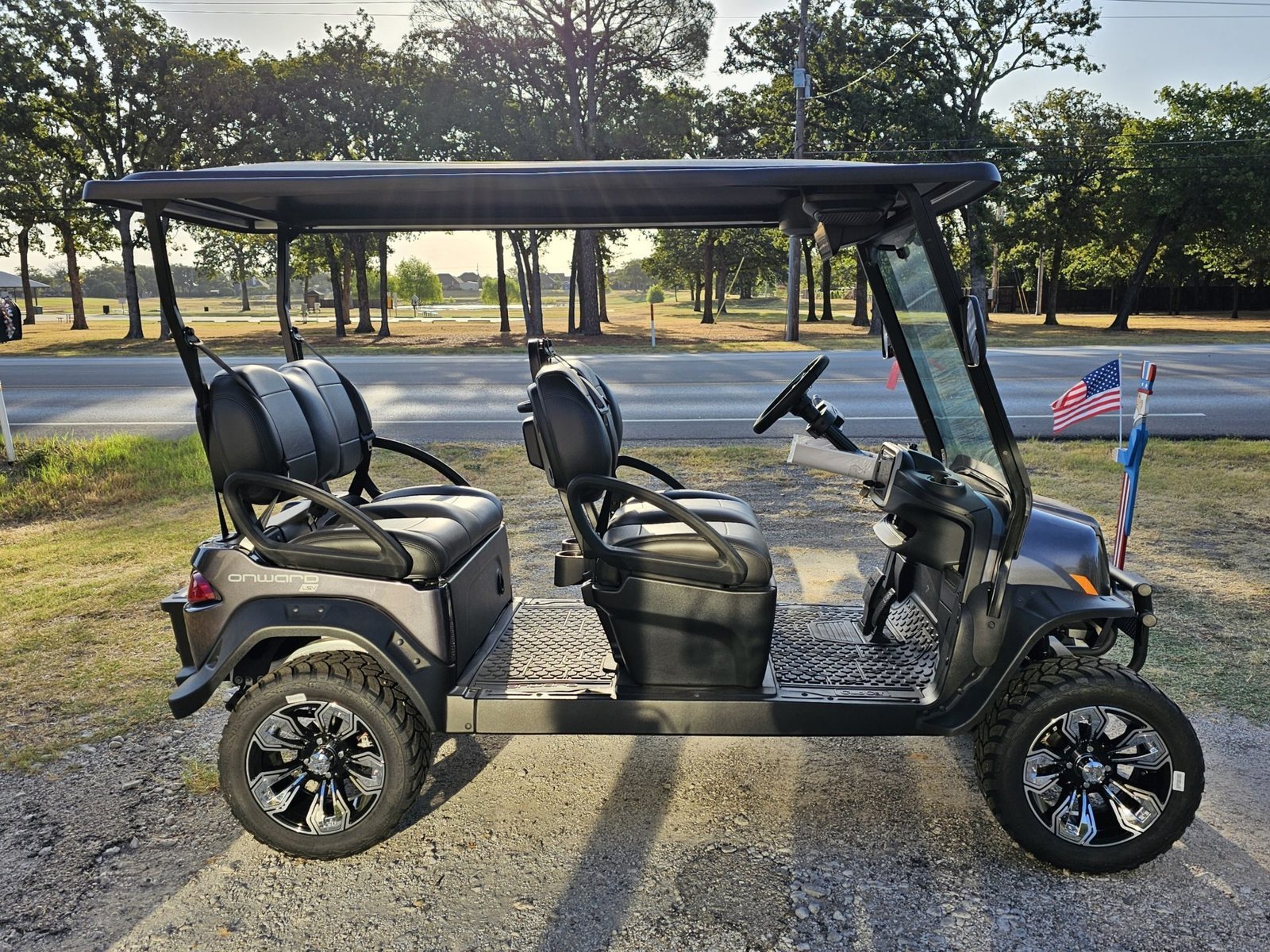

Unlike the conventional Onward 4 Passenger 2+2, which uses a rear-facing second-row seat, the Onward 4 Forward LSV provides two rows of forward-facing seating.

That configuration gives all four occupants the same direction of travel and also allows Club Car to integrate dedicated rear cargo storage behind the second row. The manufacturer lists a rear trunk capacity of up to 50 pounds and a total vehicle load capacity of 850 pounds.

This makes the model particularly practical for neighborhood trips, errands, recreational outings, and community transportation where LSV operation is permitted.

Factory Street-Legal 25 MPH Performance

The Onward 4 Forward is not simply a standard golf cart equipped with lights.

Club Car classifies it as a Low Speed Vehicle, and the manufacturer lists its maximum speed at 25 mph. It is built to comply with FMVSS 500 requirements and also meets the more demanding SAE J2358 standard referenced by Club Car for occupant protection.

Club Car notes that registered Onward LSVs can generally operate on roads with posted speed limits of 35 mph or less, with some states allowing LSV operation on certain roads up to 45 mph. State, county, city, and community rules still need to be checked before road use.

Lithium-Ion Powertrain

Club Car offers the 4 Forward LSV with either a 4.0 kWh lithium-ion battery or an optional 7.0 kWh XR lithium-ion pack.

Both configurations use a 375-amp AC motor controller, motor-shaft direct drive, and a 650W high-frequency lithium charger.

The standard battery can provide an estimated range of up to approximately 30 miles, while Club Car states that the 7.0 kWh configuration can exceed 50 miles under appropriate operating conditions.

The seller does not identify whether serial KC2723-825120 carries the 4.0 kWh or 7.0 kWh battery, so the product page should not assign one specific range until the battery is confirmed.

Four-Wheel Hydraulic Disc Brakes

Braking is one of the clearest differences between this LSV and a standard Onward PTV.

Club Car equips the 4 Forward LSV with four-wheel hydraulic disc brakes and an electronic parking brake system.

The seller’s listing independently states a four-wheel braking system and auto park brake, providing a strong match with the factory specification.

Club Car’s Auto Park Brake engages when the vehicle comes to a stop and releases when acceleration is requested.

Three-Point Seat Belts and Rollover Protection

Safety equipment further distinguishes this model.

Club Car specifies three-point seat belts in both front and rear rows, rather than the mixed front/rear belt arrangement used on its 2+2 LSV. The frame is reinforced to improve occupant protection in the event of a rollover.

A high-resolution rear backup camera, side mirrors with turn indicators, road lighting, and an Acoustic Vehicle Alerting System are also part of Club Car’s 4 Forward LSV safety architecture.

DOT Automotive Glass Windshield

The supplied cart includes a DOT windshield.

Club Car specifies Premium DOT Automotive Glass on current 4 Forward LSV configurations. The manufacturer describes the windshield as AS1 automotive safety glass designed to provide durability, optical clarity, and weather protection suitable for road-oriented operation.

Dual Digital Displays

The 4 Forward LSV uses two separate display systems.

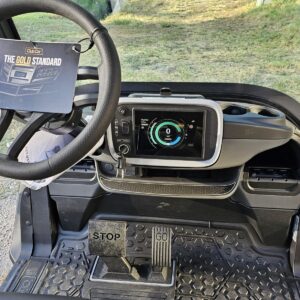

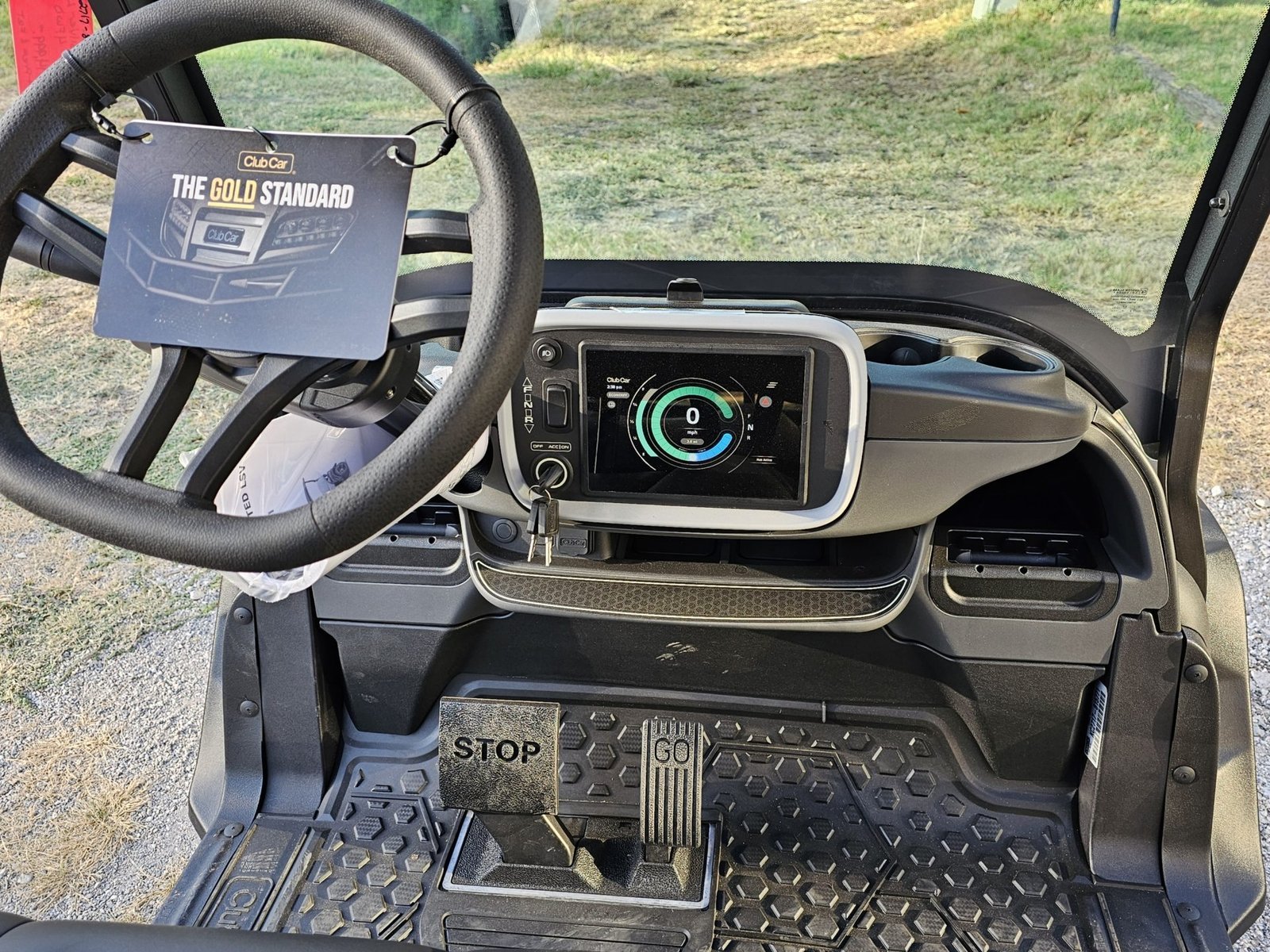

A 7-inch Delta driver display provides speed, charge level, battery consumption, vehicle diagnostics, and performance controls.

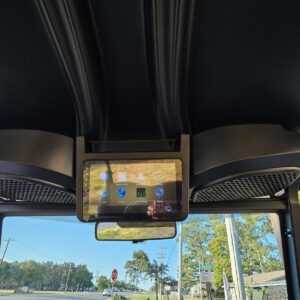

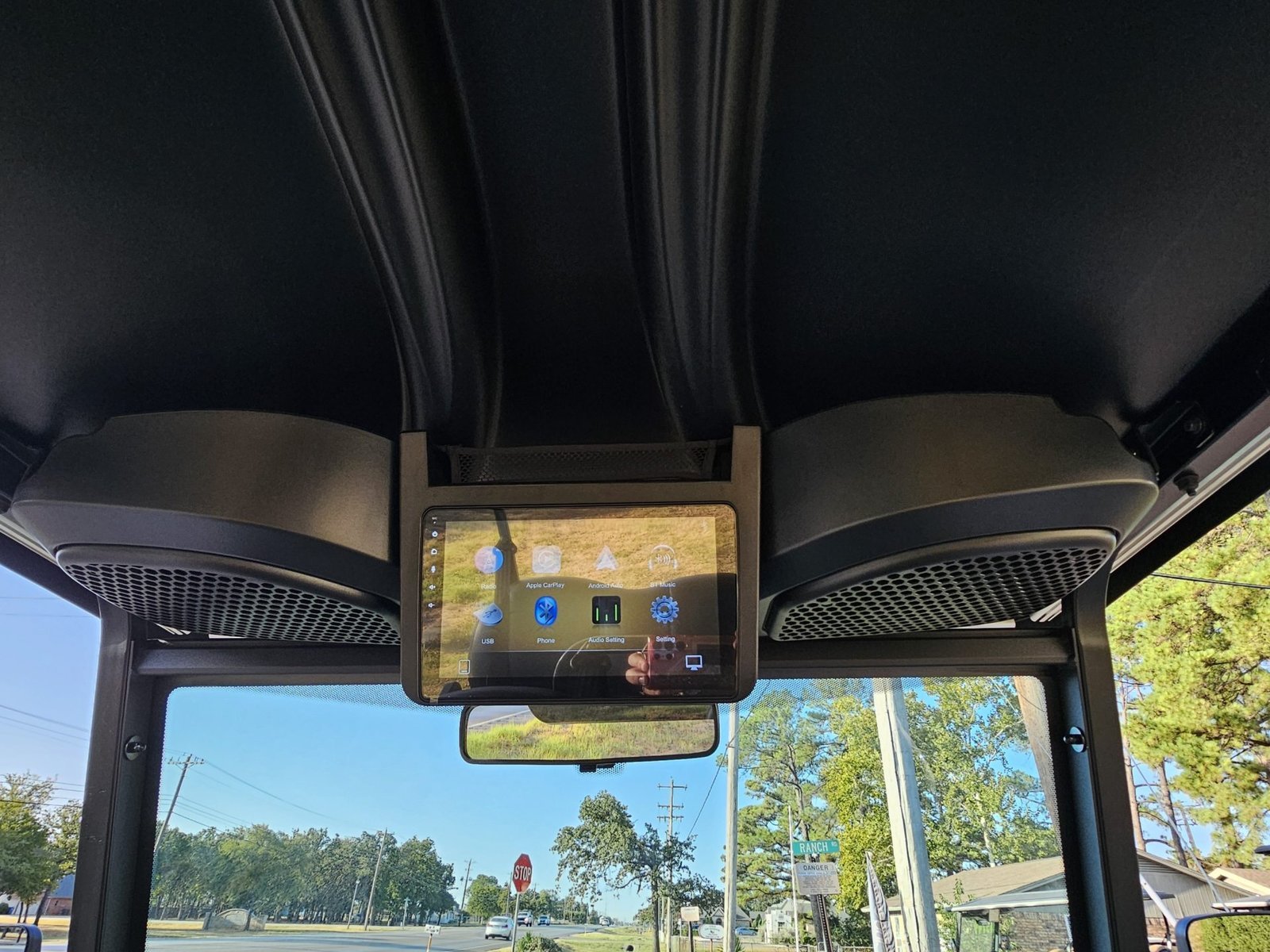

Above the occupants is a second entertainment touchscreen providing:

• Apple CarPlay®
• Android Auto™
• Bluetooth® audio
• Hands-free calling
• AM/FM radio
• Built-in equalizer

Both wireless and wired smartphone integration are supported.

This aligns almost exactly with the entertainment-console specification supplied in the seller listing.

14-Inch Mercury Wheels and Morpheus Tires

The supplied unit uses 14-inch Mercury wheels with Morpheus tires.

Club Car describes the Morpheus as a street-focused tire intended for hard surfaces and currently pairs the Mercury/Morpheus package with Midnight Silver and Blue Onyx 4 Forward LSV configurations.

This is an especially appropriate combination for a street-oriented LSV because the tire is designed around paved-surface use rather than aggressive off-road tread.

Lifted Suspension and SportDrive Steering

Club Car offers the 4 Forward LSV with lifted suspension for additional ground clearance.

Official specifications list approximately 7 inches of ground clearance, an 18-inch step-in height, and SportDrive™ self-compensating rack-and-pinion steering. Front suspension uses a wide-track independent double A-arm arrangement with hydraulic shocks, while the rear uses a leaf-spring system with automotive-grade jounce bumpers.

The vehicle measures approximately:

• 120 inches long
• 49 inches wide
• 79 inches high
• 83-inch wheelbase

AlumiCore Aluminum Frame

The 4 Forward LSV uses Club Car’s AlumiCore™ ladder-style aluminum frame.

Club Car emphasizes aluminum construction for corrosion resistance and durability, paired with automotive-grade painted bodywork and UV-protected molding.

This can be particularly useful for vehicles regularly exposed to outdoor, humid, or coastal conditions.

Key 2027 Club Car Onward 4 Forward LSV Specifications

• Manufacturer: Club Car
• Model: Onward 4 Forward LSV
• Model Year: 2027
• Condition: New
• Stock / Serial: KC2723-825120
• Passenger Capacity: 4
• Seating: Two forward-facing rows
• Power Type: Lithium electric
• Battery Options: 4.0 kWh or 7.0 kWh XR
• Controller: 375A AC
• Charger: 650W HF lithium
• Top Speed: 25 mph
• Overall Length: 120 in
• Width: 49 in
• Height: 79 in
• Ground Clearance: 7 in
• Wheelbase: 83 in
• Vehicle Load: 850 lbs
• Rear Trunk Capacity: 50 lbs
• Turning Radius: 144 in
• Steering: SportDrive™ rack and pinion
• Front Suspension: Independent double A-arm with hydraulic shocks
• Rear Suspension: Leaf spring with jounce bumpers
• Brakes: Four-wheel hydraulic disc
• Parking Brake: Electronic
• Frame: AlumiCore™ aluminum
• Driver Display: 7-inch Delta display
• Entertainment: Apple CarPlay, Android Auto, Bluetooth, AM/FM
• Backup Camera: Yes
• Seat Belts: Three-point in both rows
• Windshield: DOT automotive safety glass
• Wheels: 14″ Mercury
• Tires: Morpheus street tires

These specifications are supported by Club Car’s current 4 Forward LSV product and specification pages.

Who Is the Club Car Onward 4 Forward LSV Best For?

The 2027 Club Car Onward 4 Forward LSV for sale is particularly well suited to buyers who want a genuine factory-designed street-legal neighborhood vehicle rather than a conventional golf cart that has simply been modified after manufacture.

The four-forward seating arrangement suits families, residential communities, resorts, campuses, and other neighborhood transportation applications where local LSV regulations allow operation.

Why Consider the Onward 4 Forward LSV?

This model combines several features rarely found together in a conventional golf cart:

25 mph road capability, four forward-facing seats, lithium power, four-wheel hydraulic braking, occupant rollover protection, DOT glass, backup camera, dual displays, smartphone integration, premium sound, aluminum construction, lifted suspension, and useful rear cargo storage.

That combination makes the 2027 Club Car Onward 4 Forward LSV for sale one of the more road-focused configurations in Club Car’s current personal-vehicle lineup.

Order the 2027 Club Car Onward 4 Forward LSV

If you want a factory-designed four-passenger LSV with lithium power, forward-facing seating, modern safety equipment, and connected technology, this Onward configuration deserves consideration.

Before final purchase, confirm the exact exterior color, 4.0 versus 7.0 kWh battery, VIN/title documentation, freight and prep charges, and warranty registration for serial KC2723-825120.
