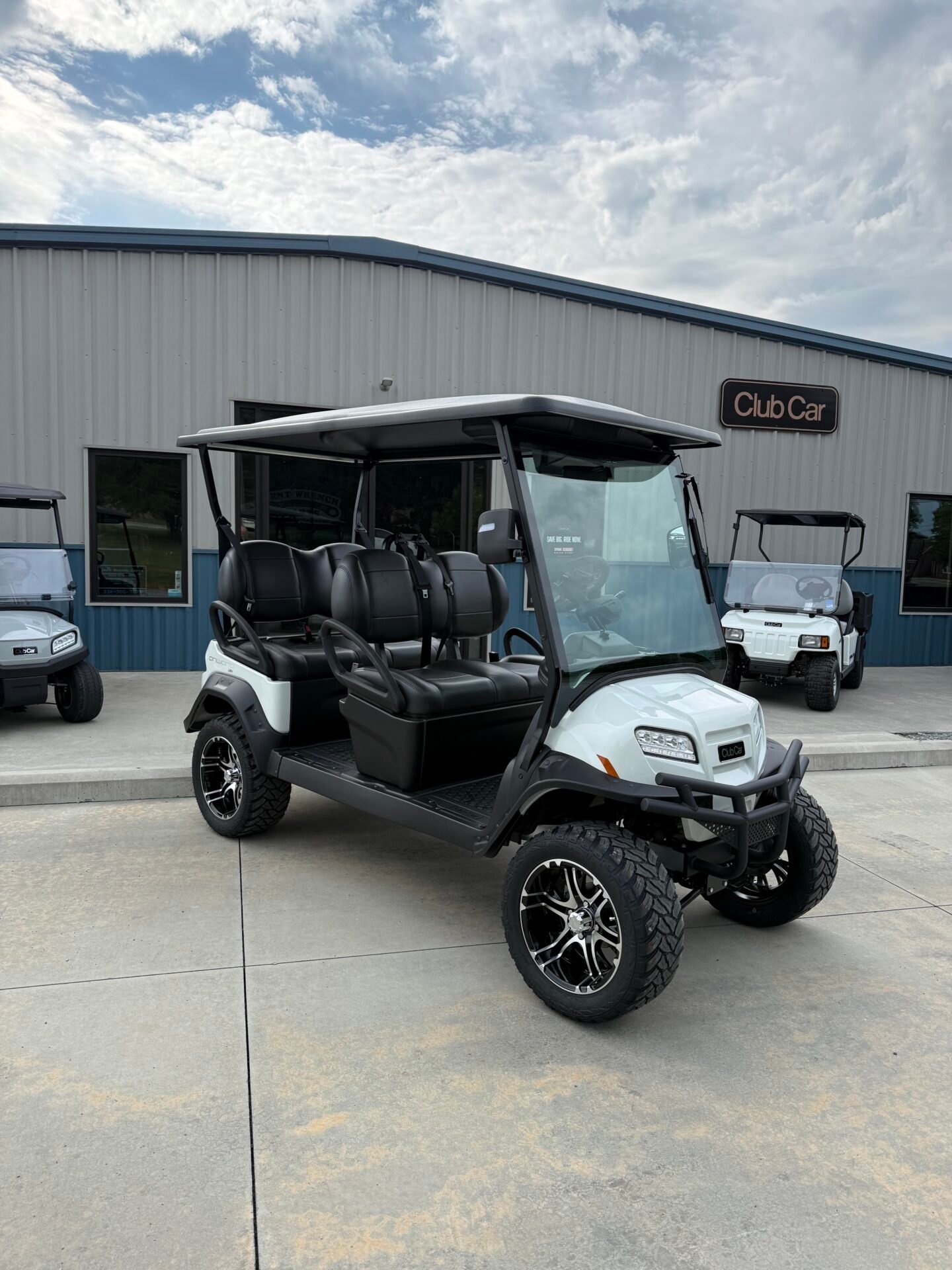

2027 Club Car Onward 4 Forward XR LSV 4-Passenger Lithium

The 2027 Club Car Onward 4 Forward XR LSV for sale combines extended-range lithium performance, four forward-facing seats, factory street-legal engineering, modern infotainment, and automotive-style safety equipment in one premium neighborhood vehicle.

This is not simply a conventional Onward golf cart fitted with aftermarket road equipment. Club Car developed the Onward 4 Forward LSV as a dedicated Low Speed Vehicle, with a 25 mph maximum speed, four-wheel hydraulic disc brakes, electronic parking brake, reinforced occupant structure, automotive safety glass, three-point belts in both seating rows, rear backup camera, and a federally recognized LSV equipment package.

The seller identifies this particular 2027 unit as the XR LSV, meaning it uses Club Car’s larger 7.0 kWh lithium battery rather than the standard 4.0 kWh pack.

2027 Club Car Onward 4 Forward XR LSV for Sale

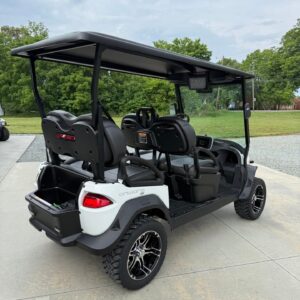

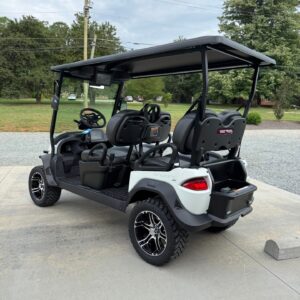

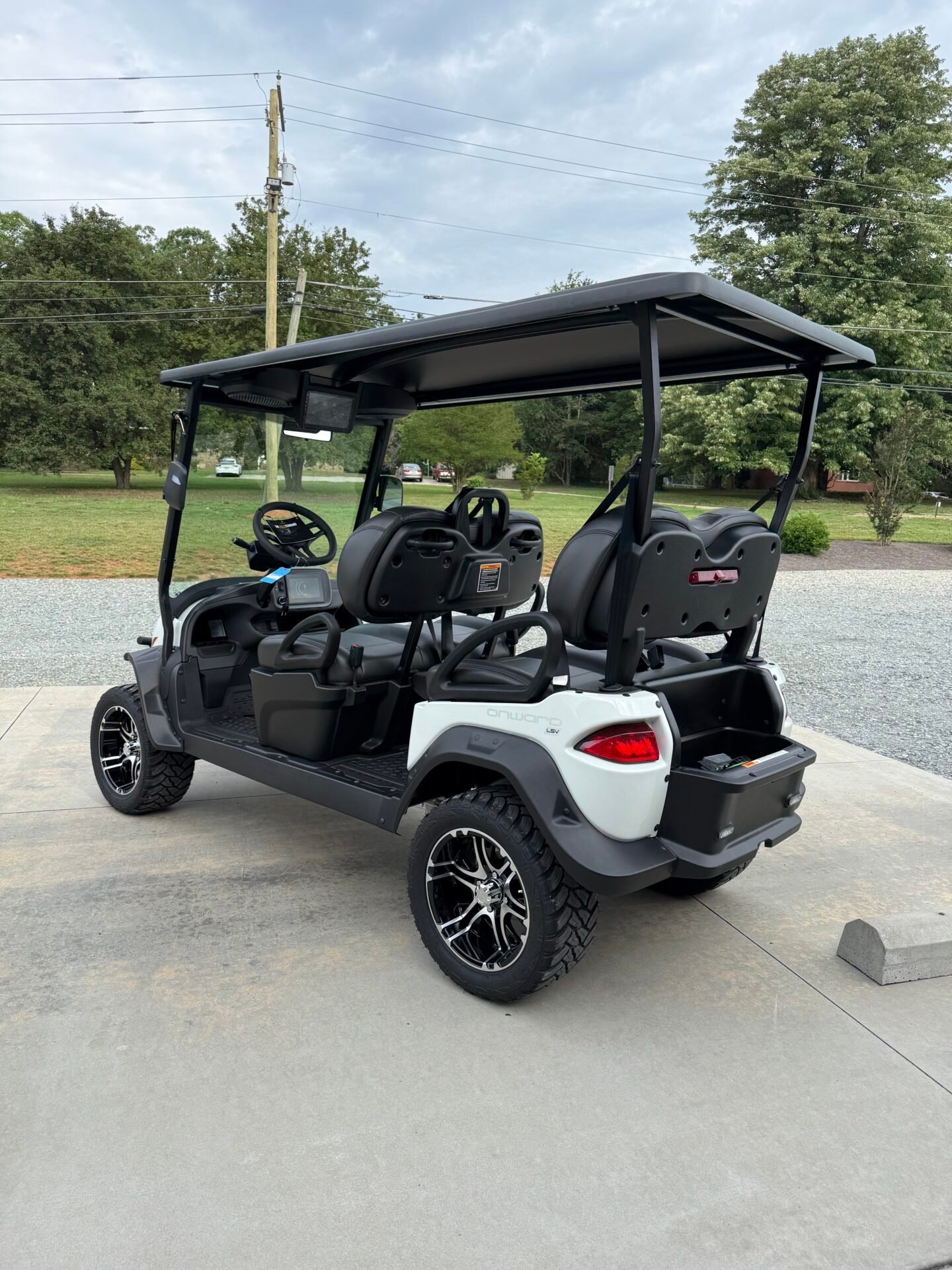

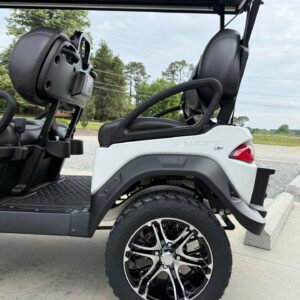

Passenger configuration is one of the defining advantages of the Onward 4 Forward.

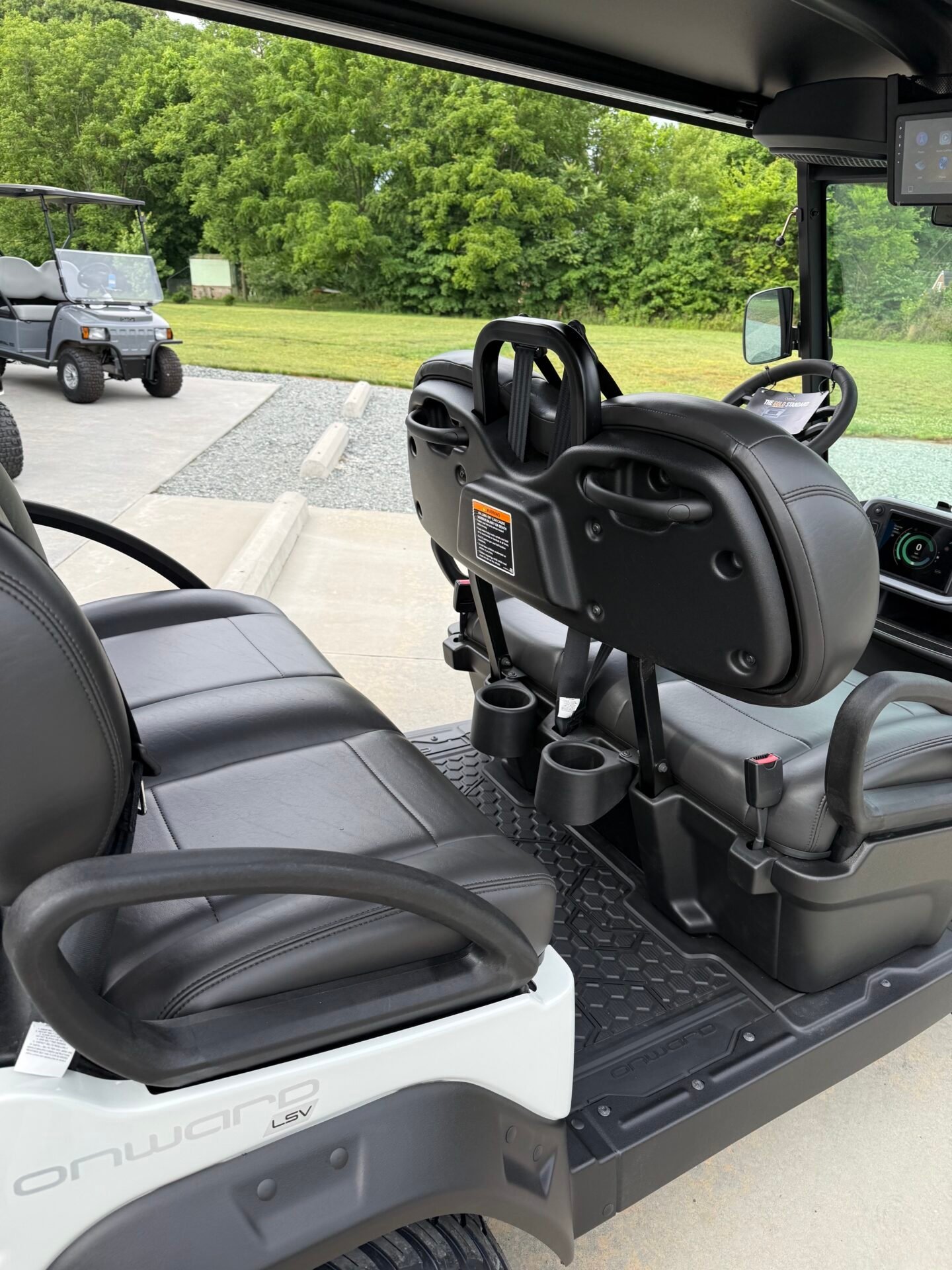

Instead of placing two occupants on a rear-facing bench like the traditional Onward 2+2, this model provides two complete rows of forward-facing seating. All four passengers therefore look in the direction of travel.

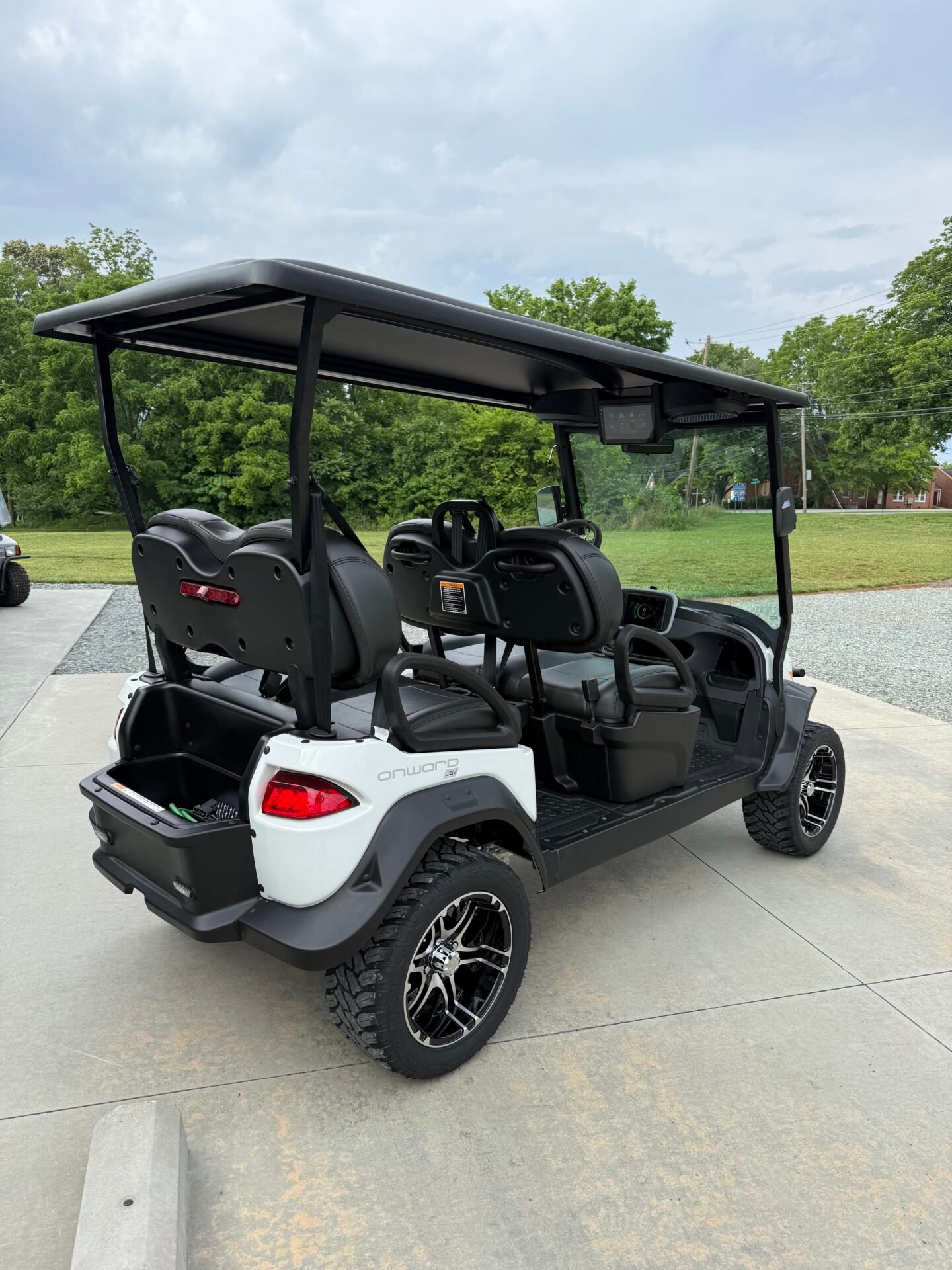

Behind the second row, Club Car incorporates additional cargo storage. The manufacturer rates the rear trunk for up to 50 pounds, while total vehicle load capacity is 850 pounds.

This configuration makes the 4 Forward especially useful for families, residential communities, resorts, neighborhood transportation, local errands, and other applications where an LSV is permitted.

7.0 kWh XR Lithium Extended Range

The XR designation is important.

Club Car offers the Onward 4 Forward LSV with either a 4.0 kWh lithium-ion battery or a larger 7.0 kWh lithium-ion XR battery. This seller explicitly describes the unit as an XR LSV, so the 7.0 kWh configuration is the appropriate specification for this cart.

Club Car estimates that the standard 4.0 kWh battery can provide up to approximately 30 miles of range, while the 7.0 kWh XR configuration can deliver more than 50 miles on a full charge under suitable operating conditions.

Actual driving range depends on vehicle load, hills, speed, temperature, terrain, driving behavior, and accessory use, so the manufacturer figure should be presented as an estimate rather than a guaranteed range.

The lithium system uses a 375-amp AC motor controller, motor-shaft direct drive, dash-mounted forward-neutral-reverse selection, and a 650W high-frequency lithium charger.

Factory 25 MPH Street-Legal LSV

Club Car rates the Onward 4 Forward LSV at 25 mph on level ground.

The vehicle falls under the USDOT Low Speed Vehicle classification and is designed around FMVSS 500 requirements. Club Car also states that the 4 Forward incorporates design considerations from the more demanding SAE J2358 automotive standard for items such as seat-belt anchorage and rollover occupant protection.

LSV road-use regulations still vary by jurisdiction. Registration, insurance, driver’s-license requirements, permitted road speed limits, and local equipment rules should always be checked before public-road operation.

Four-Wheel Hydraulic Disc Brakes

Stopping performance is another important difference between this model and a standard Onward PTV.

Club Car equips the Onward 4 Forward LSV with four-wheel hydraulic disc brakes rather than the rear mechanical drum system found on standard Onward golf carts.

An electronic Auto Park Brake engages when the vehicle stops and releases automatically when the accelerator is pressed.

The seller independently lists the LSV package and the same Auto Park Brake feature, strengthening the match between this inventory unit and Club Car’s factory 4 Forward LSV specification.

Three-Point Seat Belts in Both Rows

The Onward 4 Forward LSV provides three-point safety belts for both the front and rear seating rows.

Club Car also reinforces the vehicle structure to increase occupant protection in a rollover event. The manufacturer identifies these systems, along with the rear backup camera and road-going visibility equipment, as core safety features of the 4 Forward LSV.

This is one of the clearest ways to distinguish the 4 Forward LSV from a traditional golf-cart-based passenger configuration.

Apple CarPlay and Android Auto

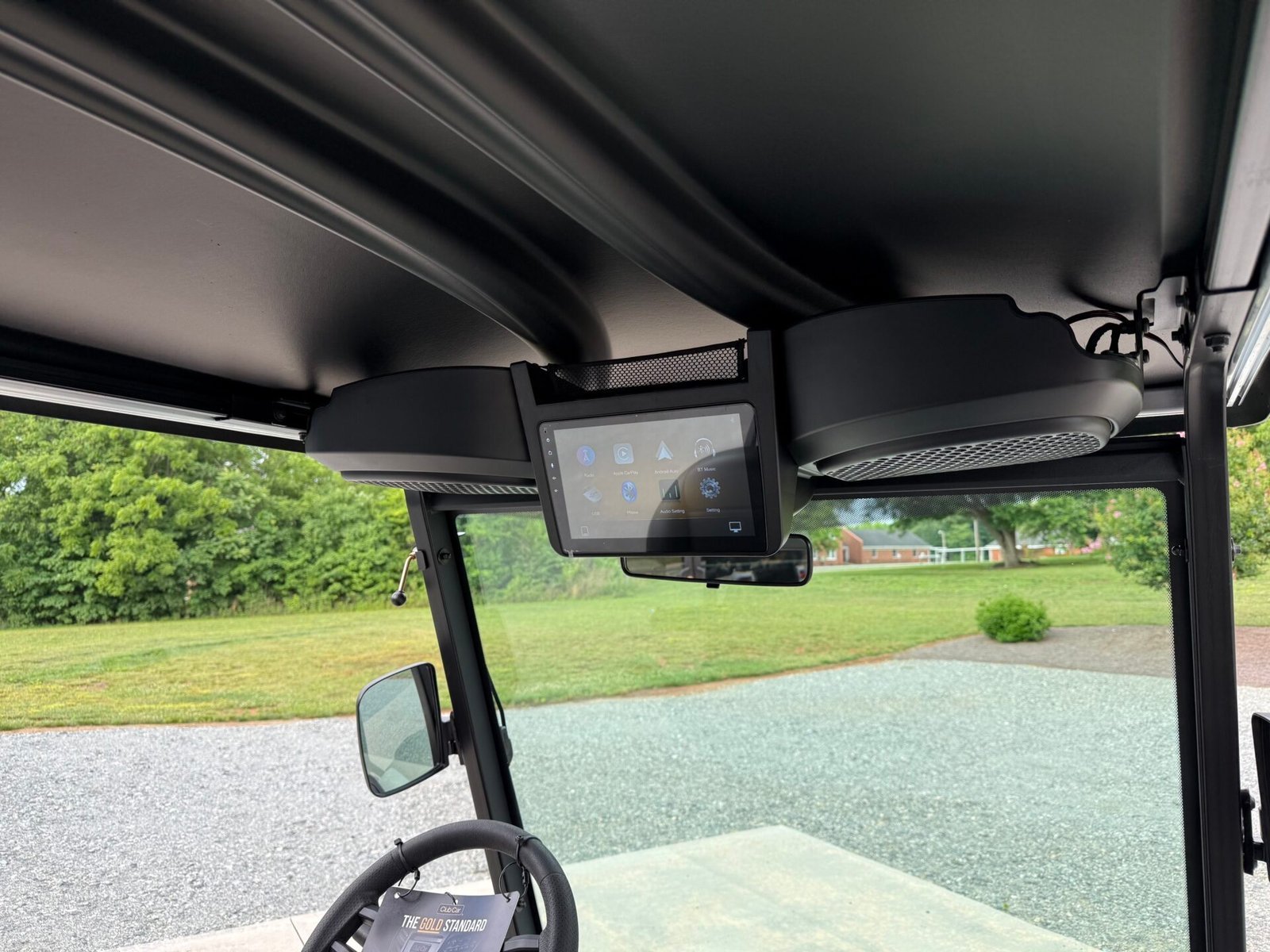

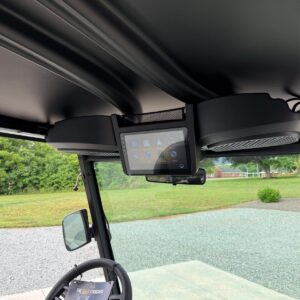

The overhead entertainment console gives this Club Car a much more automotive-style cockpit.

Club Car confirms support for:

• Apple CarPlay®
• Android Auto™
• Wireless or wired smartphone connection
• Bluetooth® audio streaming
• Hands-free calling
• AM/FM radio
• Built-in equalizer

The seller specifies the same entertainment package on this 2027 inventory unit.

Dual Smart Displays and Backup Camera

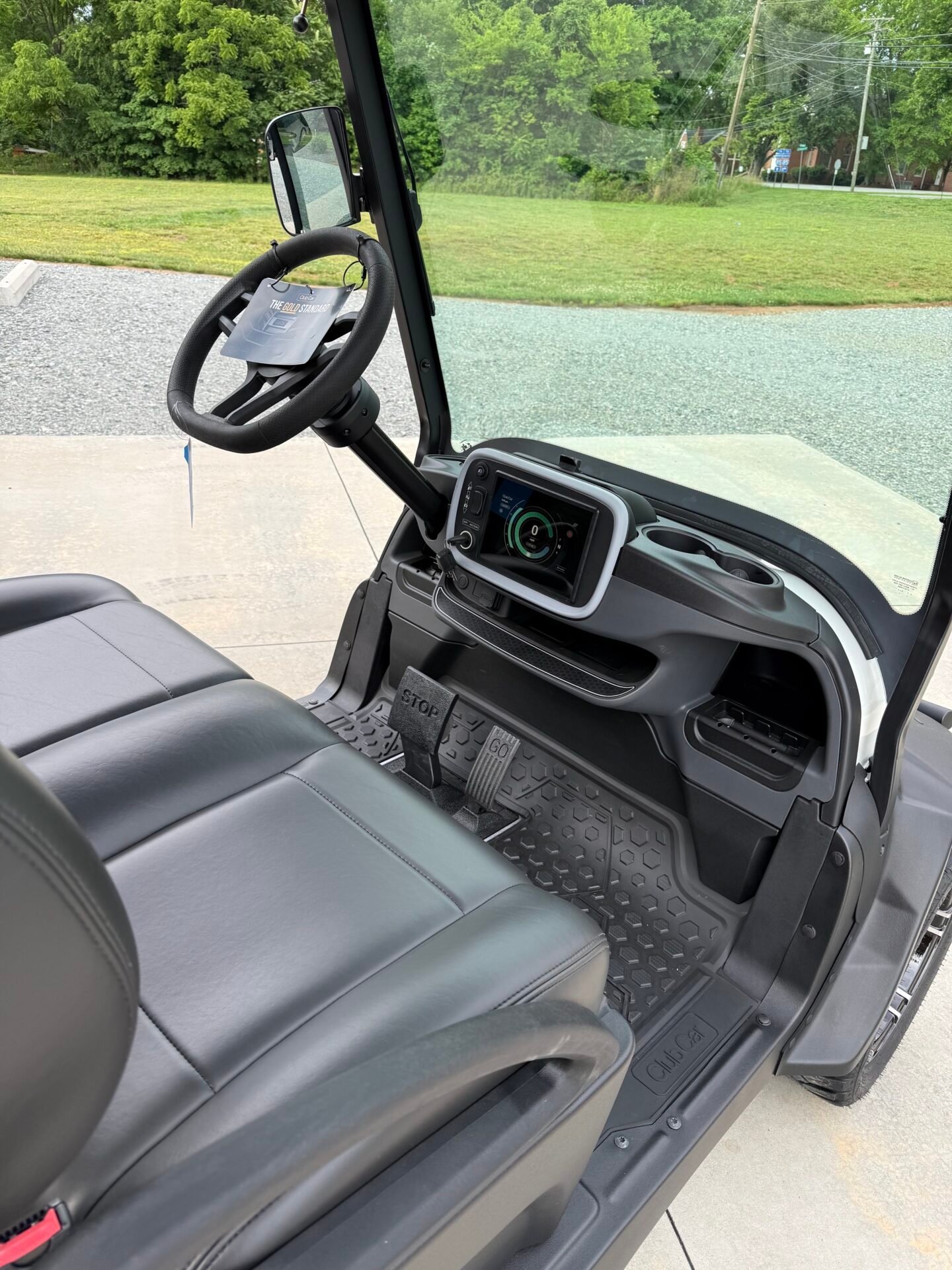

The Onward 4 Forward LSV uses two separate displays.

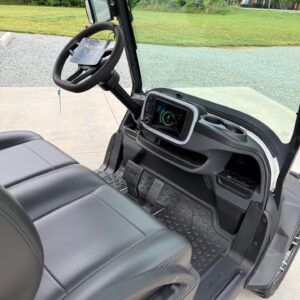

A dedicated 7-inch Delta driver display provides vehicle information including speed, state of charge, battery consumption, diagnostics, and configurable performance controls.

The second screen serves the infotainment and smartphone-integration functions.

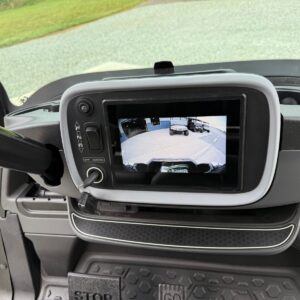

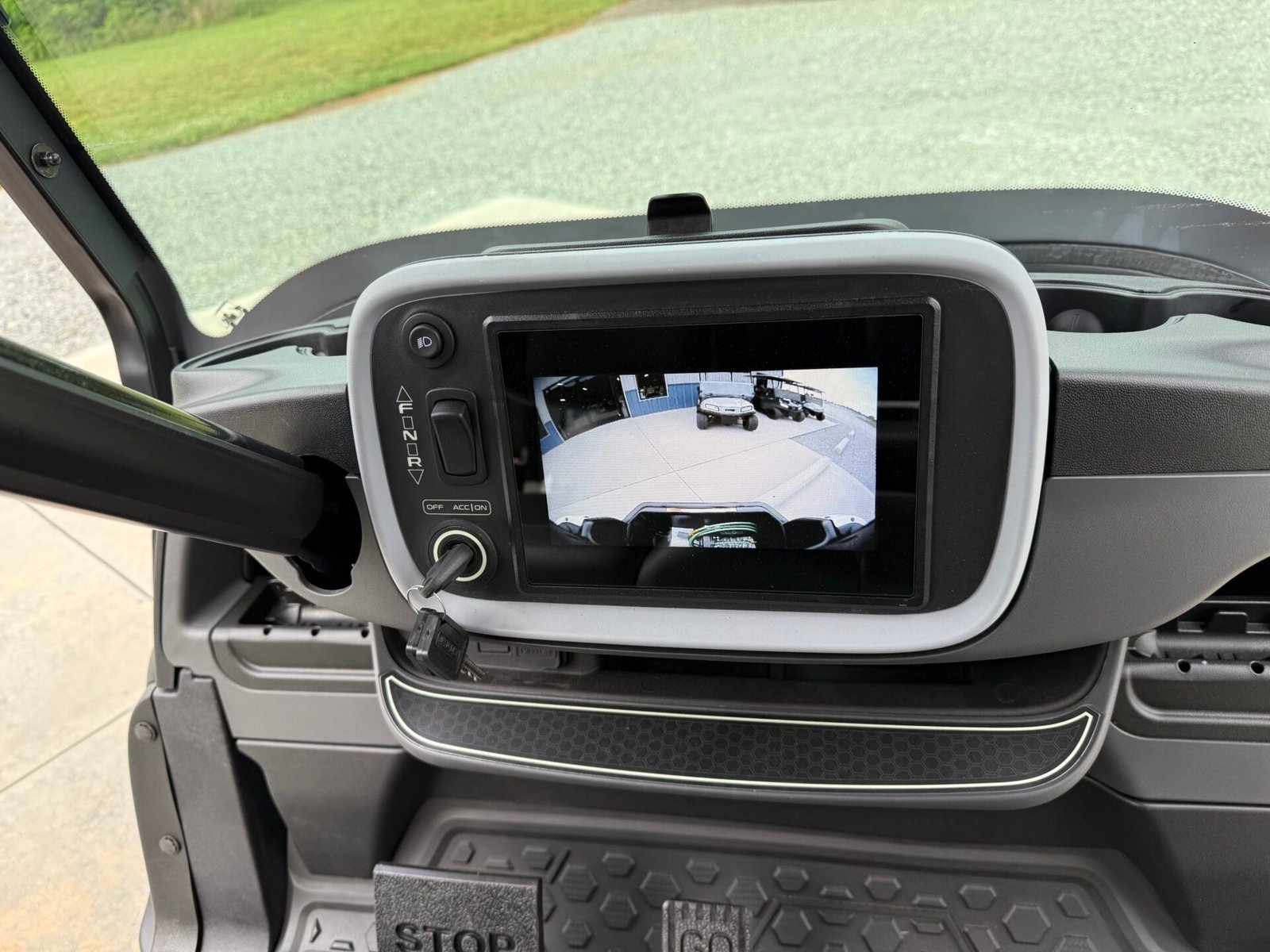

A high-resolution backup camera displays rear visibility to help with parking and reversing in neighborhoods, driveways, parking areas, and tighter spaces.

DOT Automotive Safety Glass

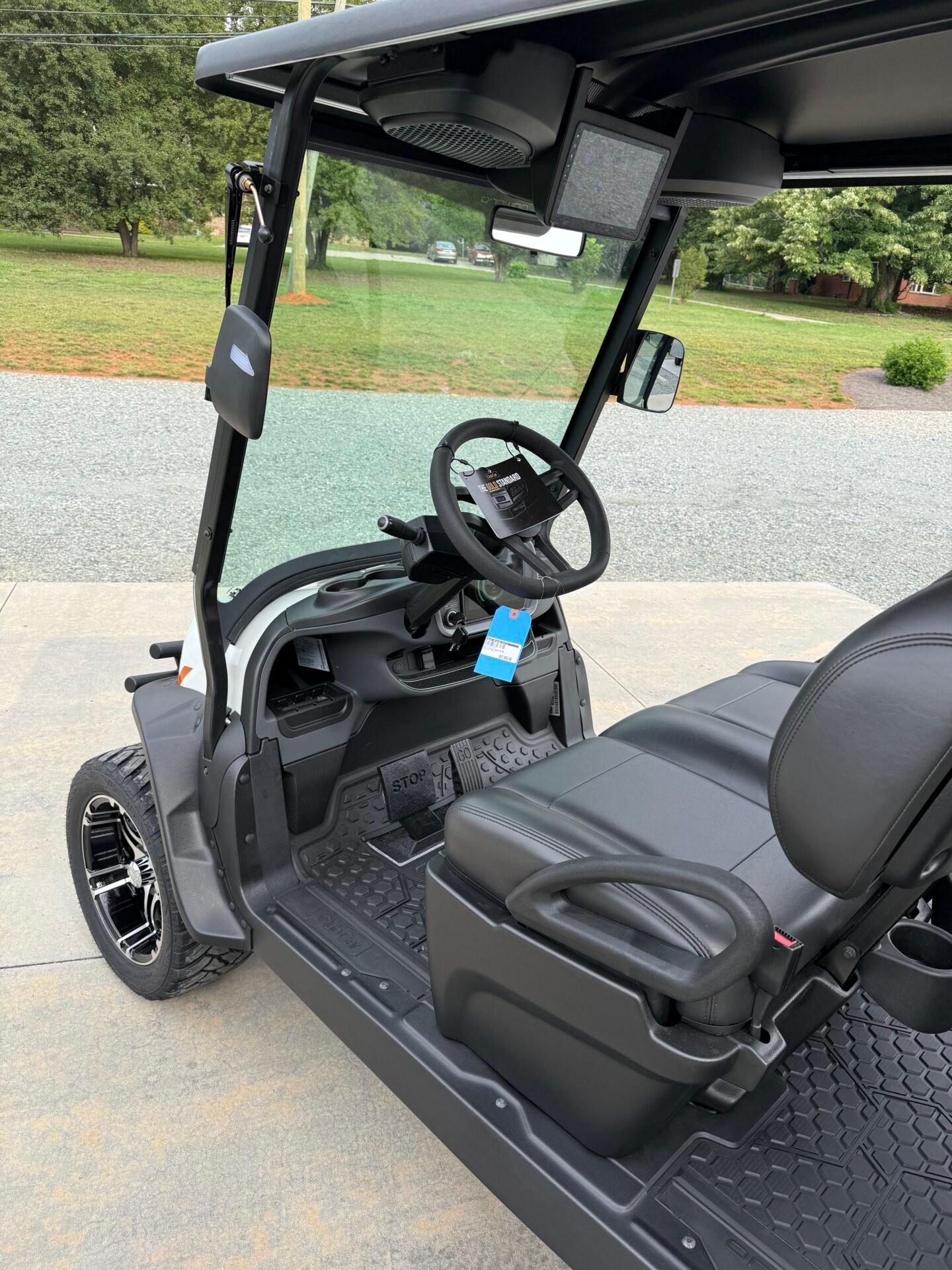

The seller lists a Premium Windshield, while Club Car specifies Premium DOT Automotive Glass on the 4 Forward LSV.

Club Car describes it as AS1 automotive safety glass intended to provide improved optical clarity, durability, and weather protection.

This is part of the vehicle’s road-focused LSV equipment rather than a basic folding acrylic golf-cart windshield.

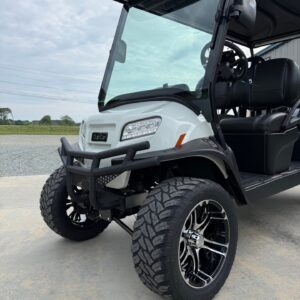

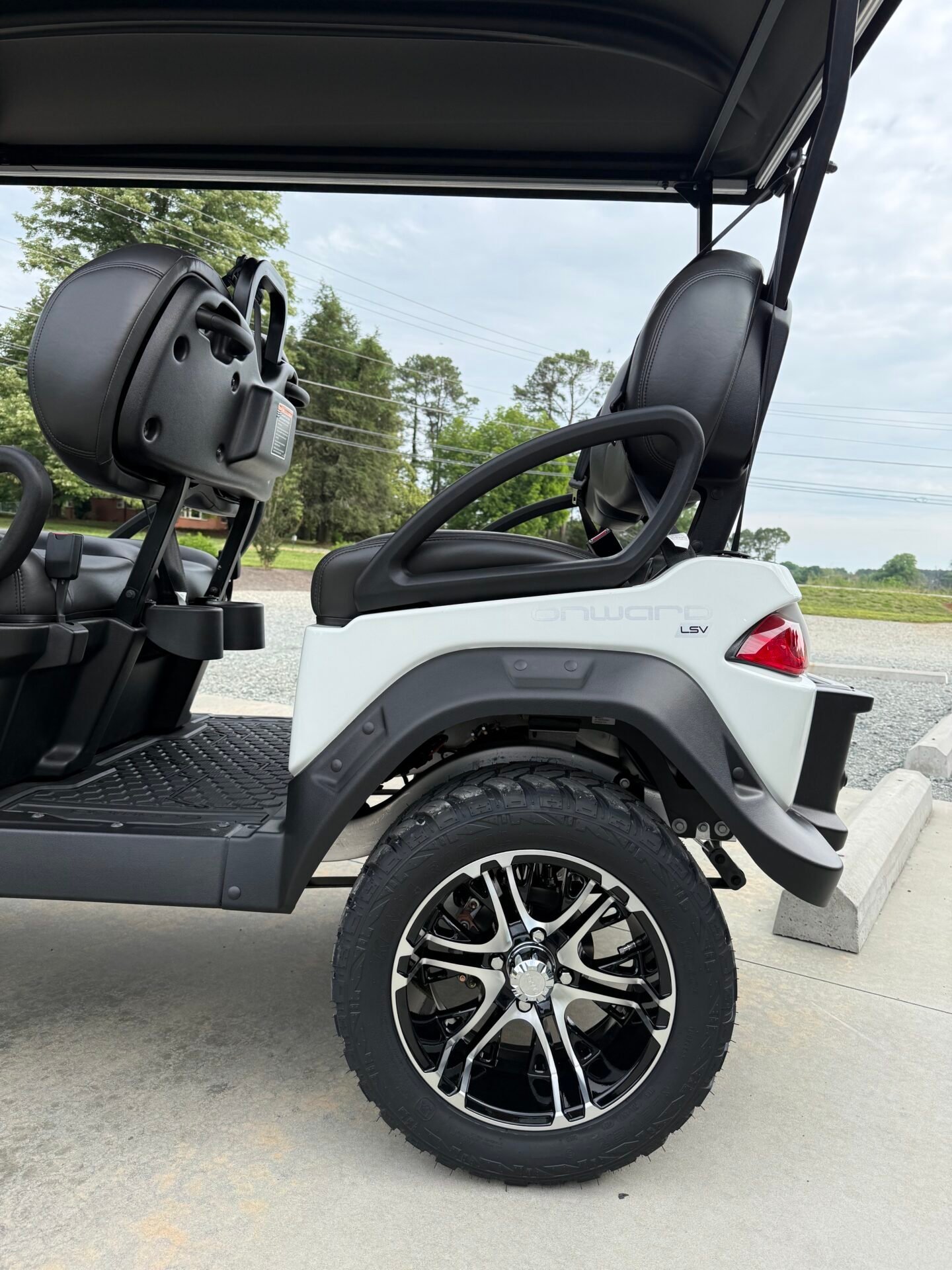

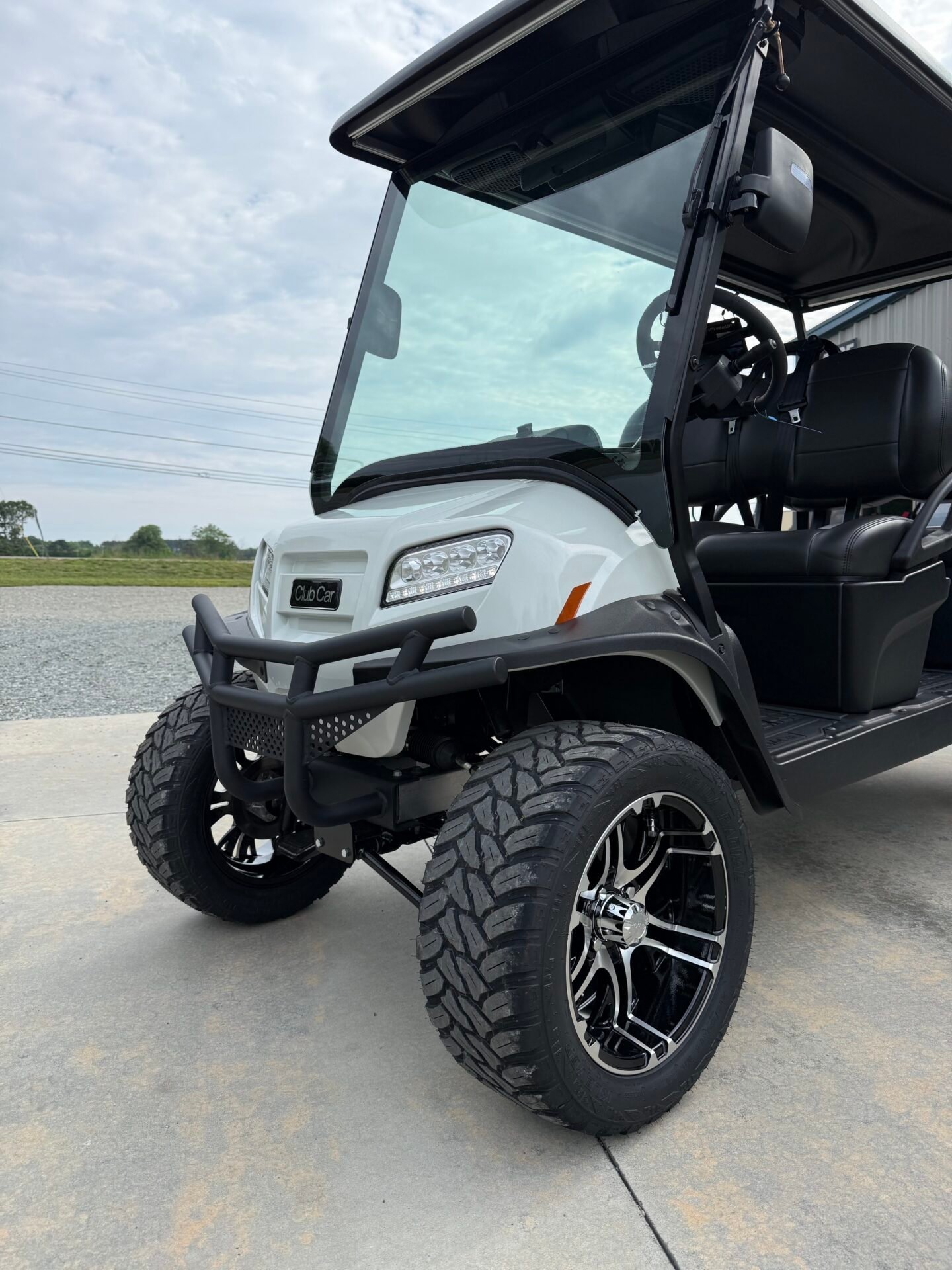

14-Inch Mercury Wheels and Klever Tires

The seller identifies the wheel package as:

14″ Mercury / Klever

Club Car independently confirms that exact combination on selected Onward 4 Forward LSV configurations. The Klever is the more versatile mixed-terrain tire option, while the Mercury is Club Car’s 14-inch aluminum wheel design.

The exact body color should not be inferred from the wheels, but the tire package itself can be safely advertised because both seller and manufacturer information support it.

SportDrive Steering and 7 Inches of Ground Clearance

Club Car equips the 4 Forward with SportDrive™ self-compensating rack-and-pinion steering.

Front suspension uses an independent wide-track double A-arm arrangement with hydraulic shocks, while the rear uses a leaf-spring system with automotive-style jounce bumpers.

Official dimensions include:

• Overall length: 120 inches
• Overall width: 49 inches
• Height: 79 inches
• Wheelbase: 83 inches
• Ground clearance: 7 inches
• Step-in height: 18 inches
• Turning radius: 144 inches

AlumiCore Aluminum Frame

The vehicle is built around Club Car’s AlumiCore™ ladder-style aluminum frame.

Aluminum construction provides corrosion resistance while helping keep structural weight under control. Club Car pairs the frame with automotive-grade painted bodywork and UV-protected molding.

For owners in humid, rainy, coastal, or year-round outdoor environments, corrosion resistance can be a meaningful long-term benefit.

Key 2027 Club Car Onward 4 Forward XR LSV Specifications

• Manufacturer: Club Car
• Model: Onward 4 Forward LSV
• Trim: XR Lithium
• Model Year: 2027
• Condition: New
• Serial: KC2708796937
• Passenger Capacity: 4
• Seating Configuration: Two forward-facing rows
• LSV: Yes
• Top Speed: 25 mph
• Battery: 7.0 kWh XR Lithium-Ion
• Estimated Range: More than 50 miles under suitable conditions
• Controller: 375A AC
• Charger: 650W HF Lithium
• Drivetrain: Motor-shaft direct drive
• Vehicle Weight: Approximately 1,137 lbs with 7.0 kWh battery
• Vehicle Load Capacity: 850 lbs
• Rear Trunk Capacity: 50 lbs
• Length: 120 in
• Width: 49 in
• Height: 79 in
• Wheelbase: 83 in
• Ground Clearance: 7 in
• Turning Radius: 144 in
• Steering: SportDrive™ rack and pinion
• Front Suspension: Independent wide-track double A-arm with hydraulic shocks
• Rear Suspension: Leaf spring with jounce bumpers
• Brakes: Four-wheel hydraulic disc
• Parking Brake: Electronic
• Frame: AlumiCore™ aluminum
• Driver Display: 7-inch Delta screen
• Backup Camera: Yes
• Apple CarPlay: Yes
• Android Auto: Yes
• Seat Belts: Three-point front and rear
• Wheels: 14″ Mercury
• Tires: Klever

Club Car’s official 4 Forward LSV specifications support these model-level values, while the seller’s specific XR designation identifies this unit as the 7.0 kWh configuration.

Who Is This Club Car Onward Best For?

The 2027 Club Car Onward 4 Forward XR LSV for sale is designed for buyers who need more than a golf cart.

Its factory 25 mph LSV classification, four forward-facing seats, extended lithium range, road-oriented safety systems, infotainment, and rear storage make it particularly useful for neighborhood transportation, private communities, resorts, local errands, campuses, and recreational properties where registered LSVs are permitted.

Why Consider the Onward 4 Forward XR LSV?

The XR configuration combines long-range lithium capability with one of Club Car’s most road-focused passenger platforms.

You get four forward-facing seats, more than 50 miles of manufacturer-estimated range under suitable conditions, 25 mph performance, hydraulic disc brakes, Auto Park Brake, three-point seat belts, reinforced rollover protection, DOT glass, backup camera, Apple CarPlay, Android Auto, aluminum-frame construction, and dedicated rear cargo storage.

For buyers comparing premium street-legal golf carts, the 2027 Club Car Onward 4 Forward XR LSV for sale offers a strong combination of safety, technology, comfort, and range.

Order the 2027 Club Car Onward 4 Forward XR LSV

Before ordering, confirm the exact exterior color, interior color, VIN/title documentation, warranty registration, final included accessories, and delivery charges for serial KC2708796937.
