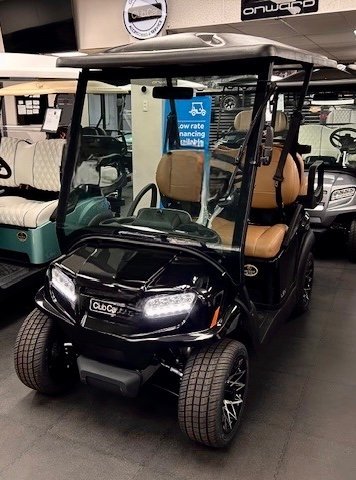

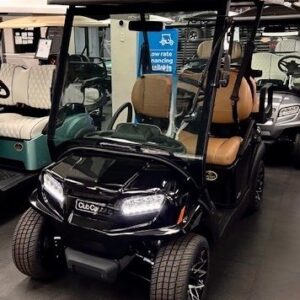

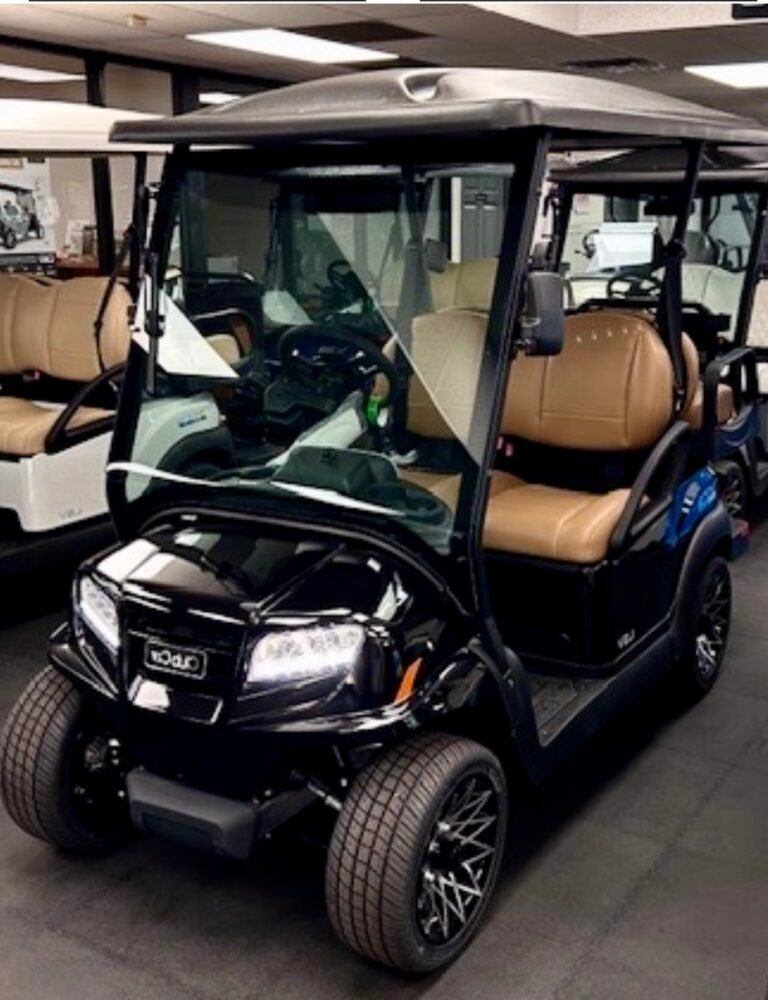

2027 Club Car Onward 4-Passenger XR Lithium LSV

The 2027 Club Car Onward 4 Passenger XR LSV for sale combines extended-range lithium power, four-passenger 2+2 seating and factory Low Speed Vehicle engineering in Club Car’s familiar Onward platform.

This configuration uses the larger 7.0 kWh XR Lithium-Ion battery and is equipped with 12-inch Athena wheels, a fold-down rear seat, VersAttach golf-bag hardware, adjustable side mirrors, automotive safety glass, rear under-seat storage, USB charging and a redesigned 7-inch digital dashboard.

2027 Club Car Onward 4 Passenger XR LSV for Sale

It is important to distinguish this cart from Club Car’s newer 4 Forward LSV.

The Onward 4 Passenger LSV uses the traditional 2+2 layout: two front-facing seats plus a rear-facing convertible passenger bench. The seller specifically lists a fold-down rear seat, VersAttach grab bar and golf-bag attachment, all consistent with this configuration.

Club Car separately lists the Onward 4 Passenger (2+2) LSV and 4 Forward LSV as different products.

7.0 kWh XR Lithium Performance

Club Car offers the Onward 4 Passenger LSV with:

• 4.0 kWh Base Lithium-Ion
• 7.0 kWh XR Lithium-Ion

This cart explicitly lists the 7 kWh XR Extra Range Lithium Battery, so XR can confidently remain in the title and SEO.

Club Car rates the lithium system at 4.7 hp / 3.5 kW with a 375-amp AC speed controller. The drivetrain uses motor-shaft direct drive, dash-mounted forward-neutral-reverse selection and a 14.85:1 rear axle ratio.

Club Car currently states the 7.0 kWh Onward LSV can deliver up to approximately 55 miles of estimated range, depending on load, terrain and operating conditions.

Factory 25 MPH LSV

Unlike the conventional Onward PTV, this model is a factory LSV.

Club Car specifies a maximum speed of 25 mph on level ground for both lifted and non-lifted Onward 4 Passenger LSVs.

Club Car states that Onward LSVs fall under the USDOT Low Speed Vehicle classification. Registration, licensing, insurance and permissible road speeds still depend on state and local regulations.

For WooCommerce:

Street Legal (LSV): Yes
Top Speed: 25 mph (Street Legal LSV)

Non-Lifted Configuration

Although the marketplace description contains the phrase “lifted factory LSV,” the stronger product evidence points to a non-lifted cart.

The seller specifies:

12″ Athena Black/Silver wheels with radial tires

Club Car’s current configuration matrix shows:

Non-Lifted → 12″ Athena/Kruizer

Lifted → 14″ Mercury or Zeus wheel packages, depending on color/trim.

Jeffrey Allen’s current $18,095 XR LSV inventory also describes matching units as non-lifted 4-passenger Lithium XR LSVs.

Therefore, the product page should not claim a lift kit.

Dimensions and Weight

For the non-lifted Onward 4 Passenger LSV, Club Car specifies:

• Overall Length: 108 in
• Overall Width: 48.75 in
• Topped Height: 76 in
• Wheelbase: 65.4 in
• Ground Clearance: 4.5 in
• Turning Radius: 111 in
• XR Curb Weight: 997 lbs
• Vehicle Load Capacity: 800 lbs

These dimensions further separate this cart from the taller lifted model.

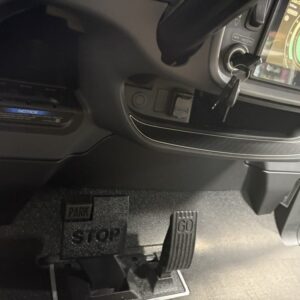

LSV Braking System

Club Car equips the Onward 4 Passenger LSV with:

• Front hydraulic disc brakes
• Self-adjusting rear mechanical drum brakes
• Electronic parking brake

This is different from both the conventional Onward PTV and the 4 Forward LSV, which uses four-wheel hydraulic discs.

That distinction should remain accurate in technical product copy.

Occupant Protection and Road Safety

Club Car’s Onward LSV includes road-focused safety equipment such as:

• Reinforced frame
• 3-point front seat belts
• 2-point rear seat belts
• Backup camera
• AVAS pedestrian alert system
• Automotive safety glass
• Turn signals
• Headlamps
• Brake lamps
• Horn
• Mirrors

Club Car says the platform meets FMVSS 500 and incorporates SAE J2358-related occupant protection measures.

Automotive Safety Glass Windshield

The seller lists an AS1 automotive safety-glass windshield.

Club Car confirms Premium DOT Automotive Glass across its Onward 4 Passenger LSV configurations.

A manual windshield wiper is also specifically listed by the seller.

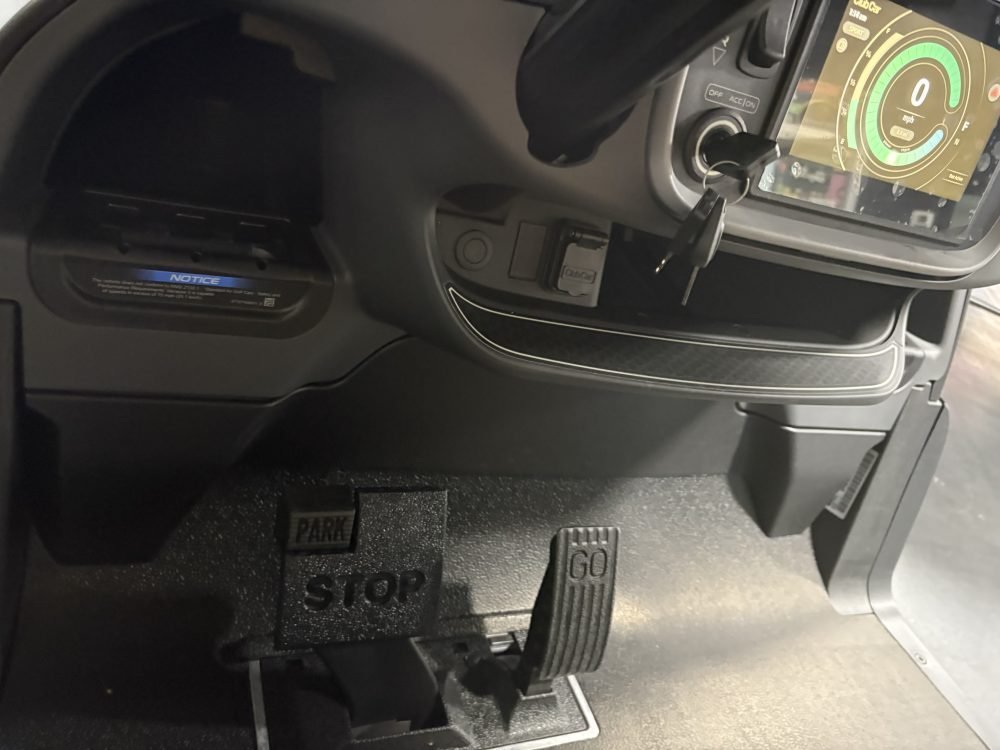

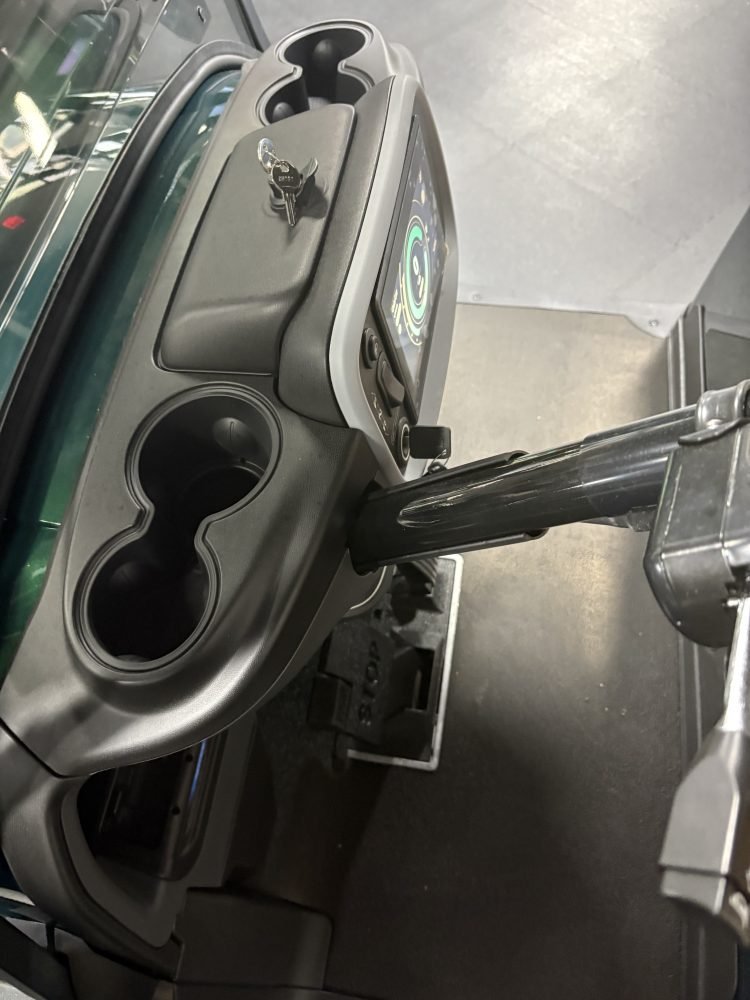

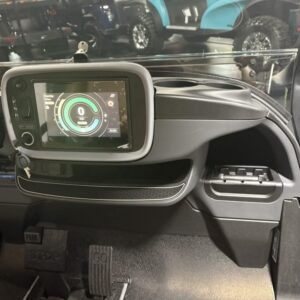

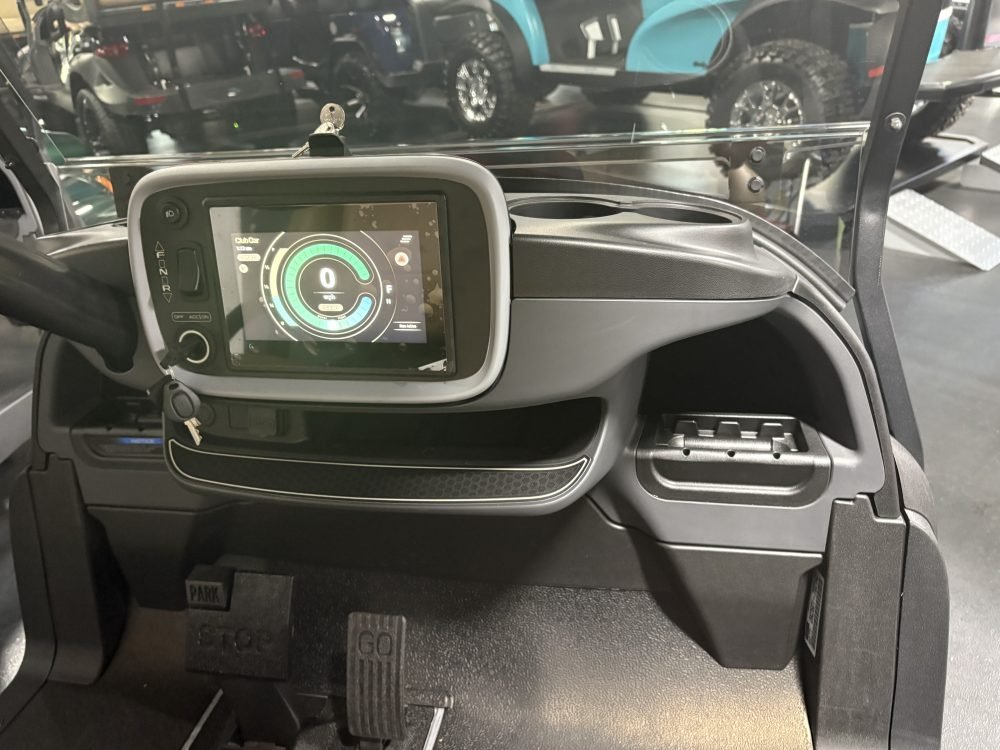

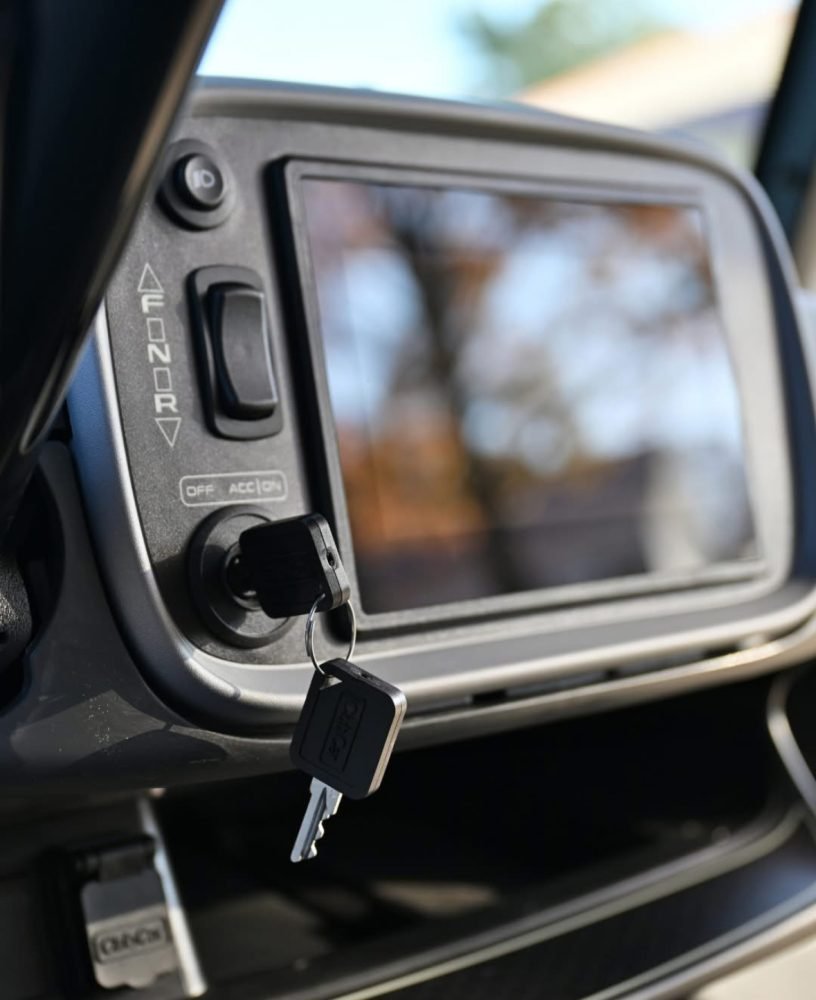

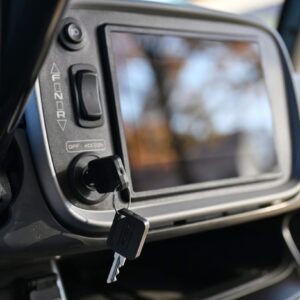

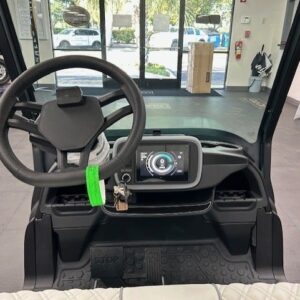

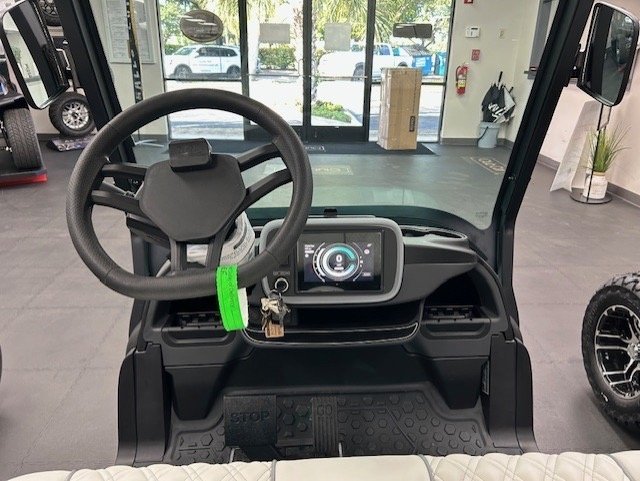

7-Inch Digital Display

The redesigned dashboard includes a 7-inch display.

Club Car says the screen provides vehicle diagnostics including speed, state of charge and battery consumption.

This gives the driver more detailed operating information than a conventional golf-cart dash.

12-Inch Athena Wheels

The seller identifies:

12″ Athena Black/Silver Wheels with radial tires

Club Car independently confirms 12″ Athena/Kruizer as the standard non-lifted wheel-and-tire configuration across current Onward 4 Passenger LSV color packages.

This is another strong reason to classify the cart as non-lifted.

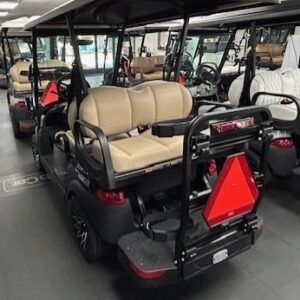

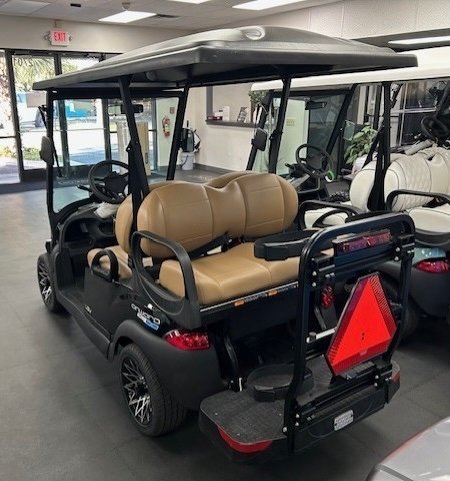

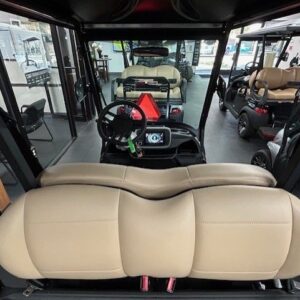

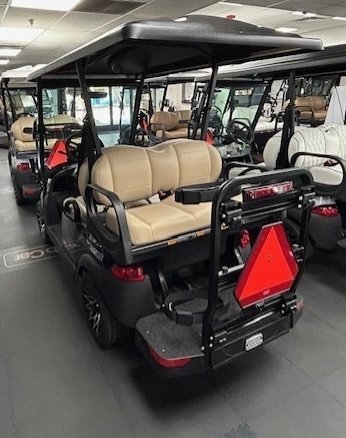

Rear Seat and Golf Package

The rear passenger seat folds down for utility use.

The seller also specifies:

• VersAttach golf-bag attachment
• VersAttach grab bar
• Rear under-seat storage

These features make the cart particularly versatile for owners who want both passenger transportation and occasional golf or cargo use.

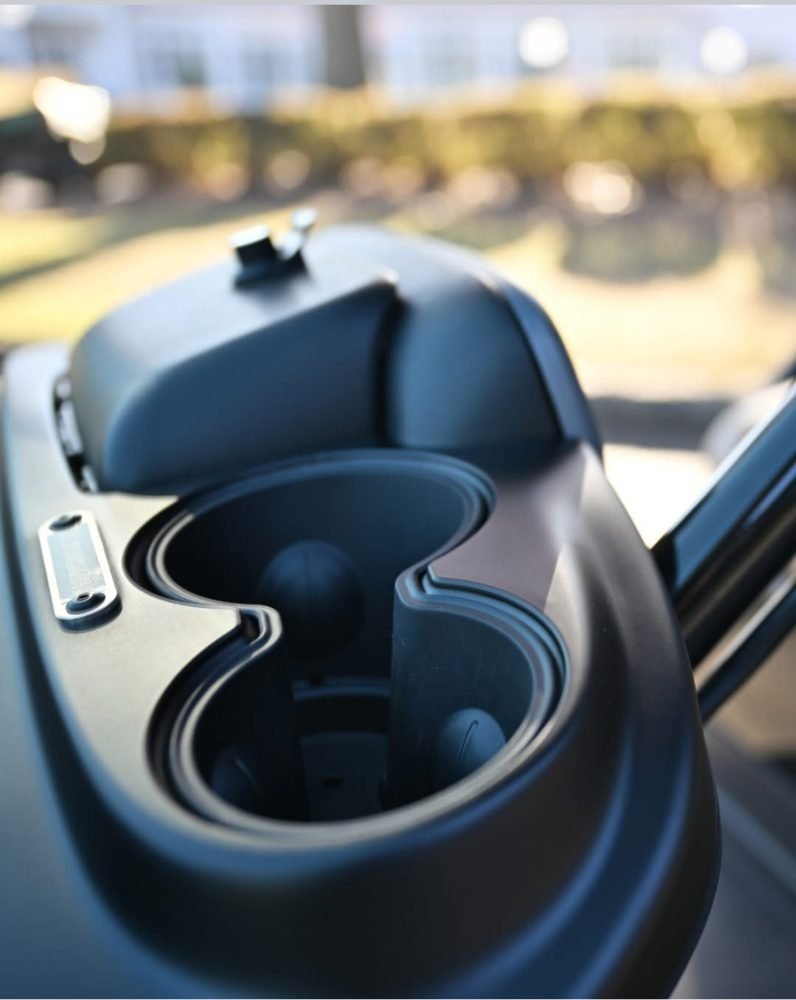

Premium Comfort and Storage

The seller includes Premium Comfort Seats, side glovebox doors and additional storage.

Club Car’s current Onward LSV configurations include dashboard storage and offer locking glovebox equipment depending on trim.

Because the exact exterior color/trim is not uniquely identified in the marketplace listing, do not call the unit “Premium trim” solely from these accessories.

Key Specifications

• Manufacturer: Club Car
• Model: Onward 4 Passenger (2+2) LSV
• Model Year: 2027
• Condition: New
• Power Type: XR Lithium-Ion
• Battery: 7.0 kWh XR
• Motor: 3.5 kW AC
• Rated Power: 4.7 hp
• Controller: 375A AC
• Charger: 650W AC Delta-Q
• Drivetrain: Motor-shaft direct drive
• Rear Axle Ratio: 14.85:1
• Top Speed: 25 mph
• Estimated Range: Up to approximately 55 miles
• Seating Capacity: 4
• Seating Layout: 2+2, rear-facing second row
• Suspension: Non-lifted
• Curb Weight: 997 lbs XR
• Vehicle Load: 800 lbs
• Length: 108 in
• Width: 48.75 in
• Height: 76 in
• Wheelbase: 65.4 in
• Ground Clearance: 4.5 in
• Turning Radius: 111 in
• Steering: SportDrive™ rack and pinion
• Front Brakes: Hydraulic disc
• Rear Brakes: Mechanical drum
• Parking Brake: Electronic
• Frame: AlumiCore™ aluminum
• Wheels: 12″ Athena
• Windshield: AS1 automotive safety glass
• Display: 7 in
• Rear Seat: Fold-down
• USB-A / USB-C: Yes
• Side Mirrors: Yes
• VersAttach Golf-Bag System: Seller listed

Who Is This Golf Cart Best For?

The 2027 Club Car Onward 4 Passenger XR LSV for sale is well suited to neighborhood transportation, gated communities, resorts, planned developments and private properties where a properly registered LSV is permitted.

Its rear flip seat and golf accessories also make it useful for buyers who want a cart capable of switching between passenger use, golf and light cargo duties.

Why Consider the XR LSV?

The 7.0 kWh XR battery is the key upgrade over the standard Base Lithium version.

It gives buyers more estimated driving range while retaining factory 25 mph LSV capability, premium safety equipment and Club Car’s familiar Onward size.

Order the 2027 Club Car Onward 4 Passenger XR LSV

Before publishing or final purchase, confirm the specific exterior color, stock/serial number, exact Premium/Standard trim and physical suspension configuration for the individual cart.
