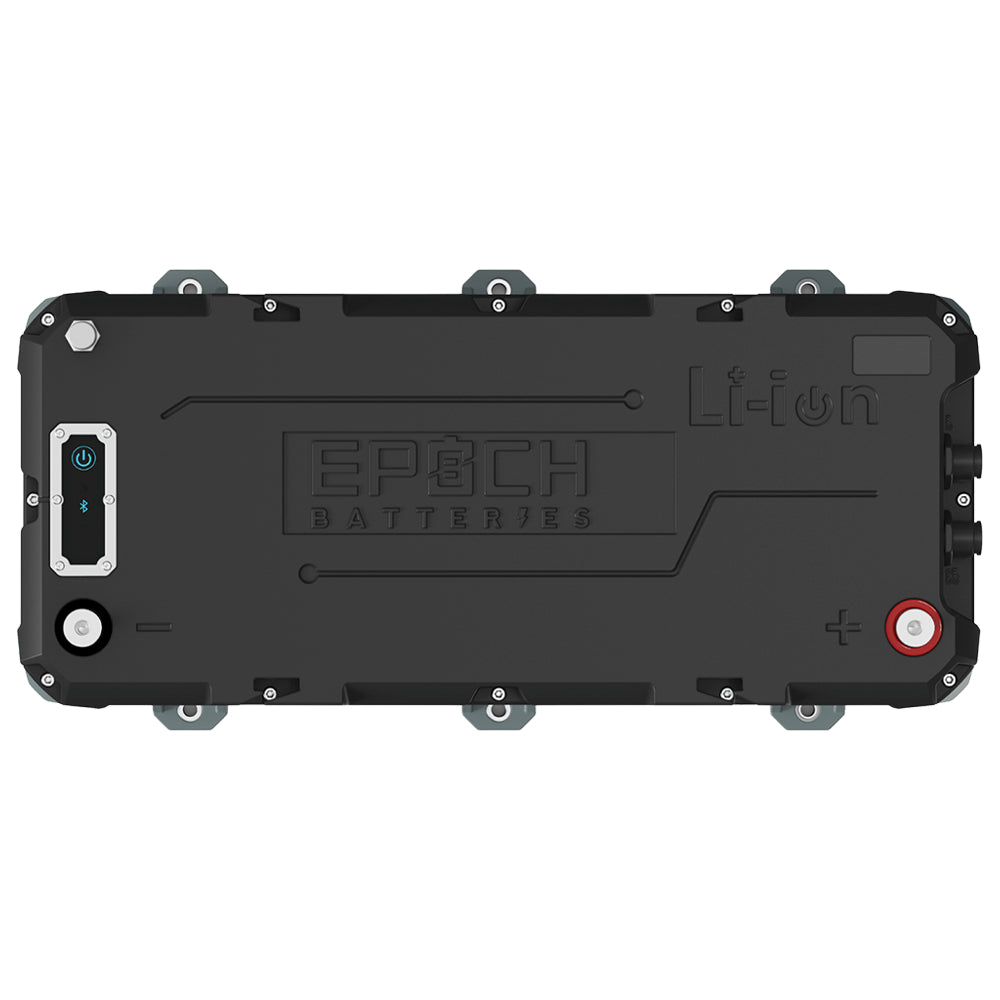

36V 100Ah LiFePO4 Lithium Battery Bundle by EPOCH

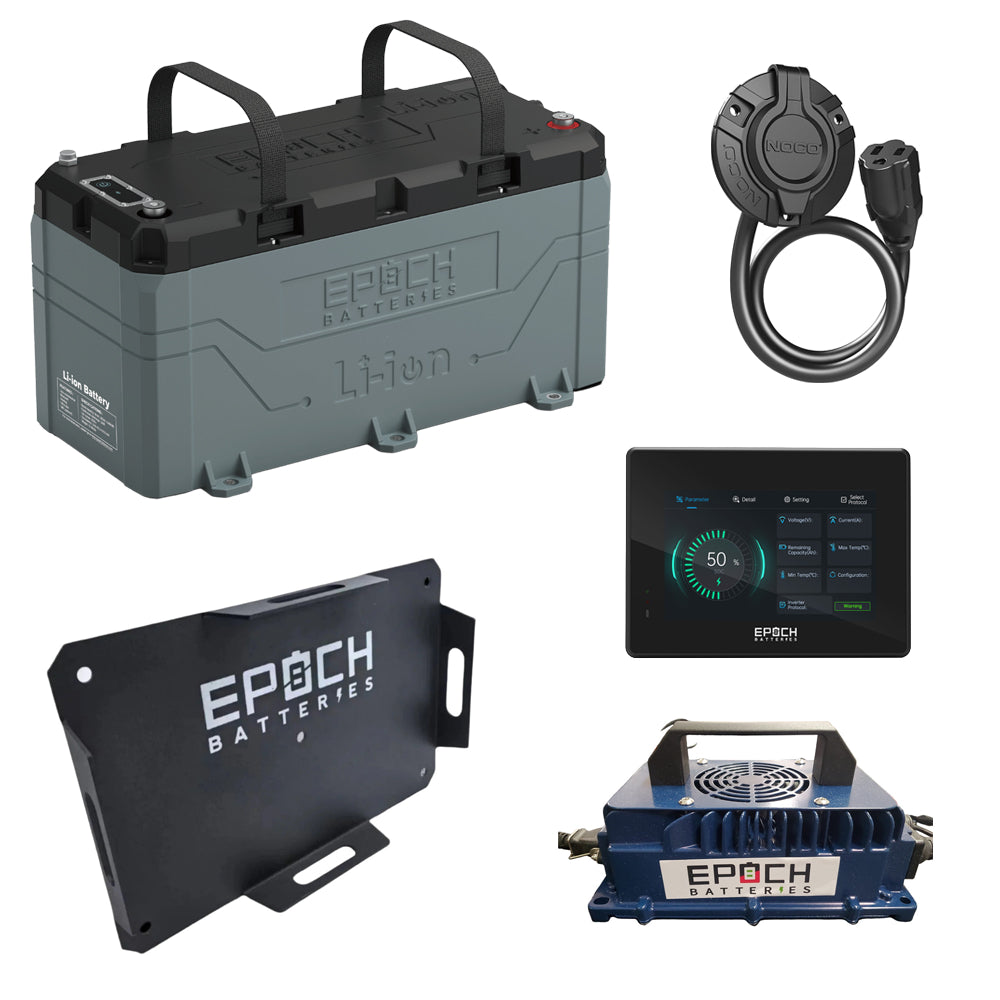

Battery Bundle:

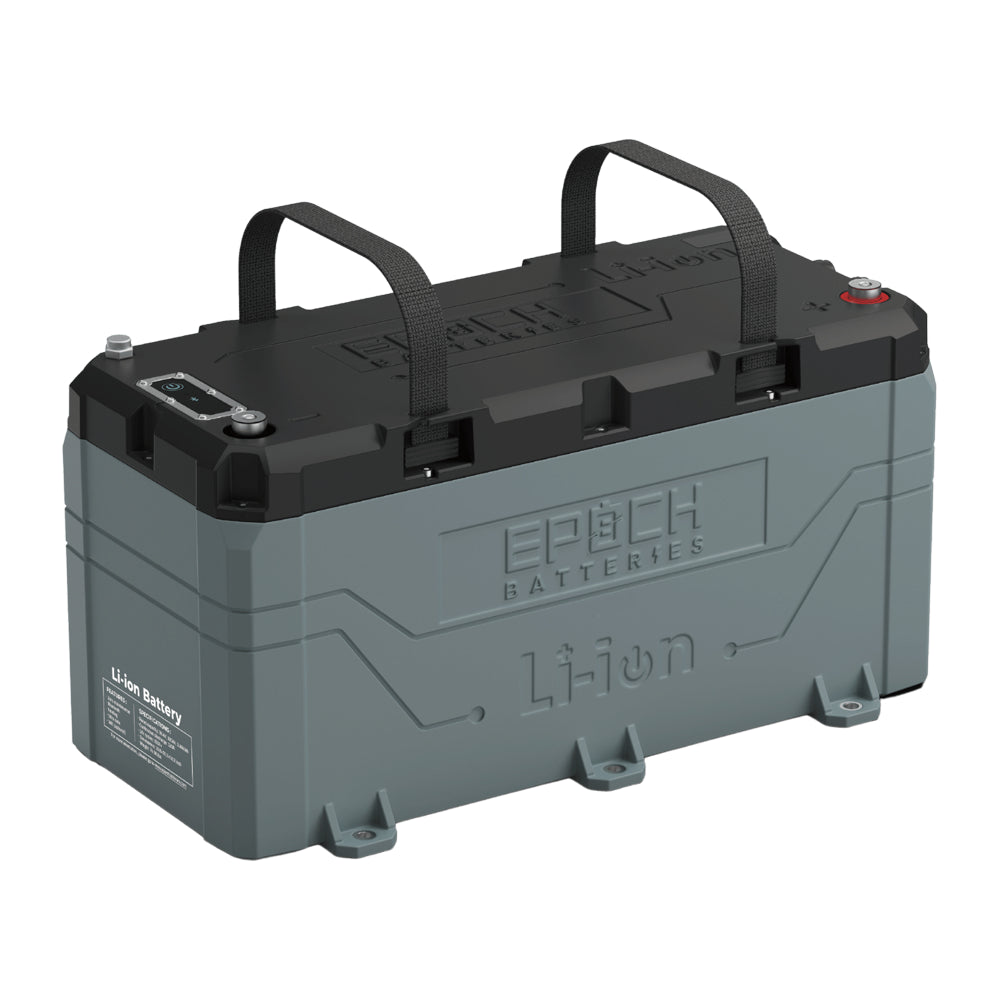

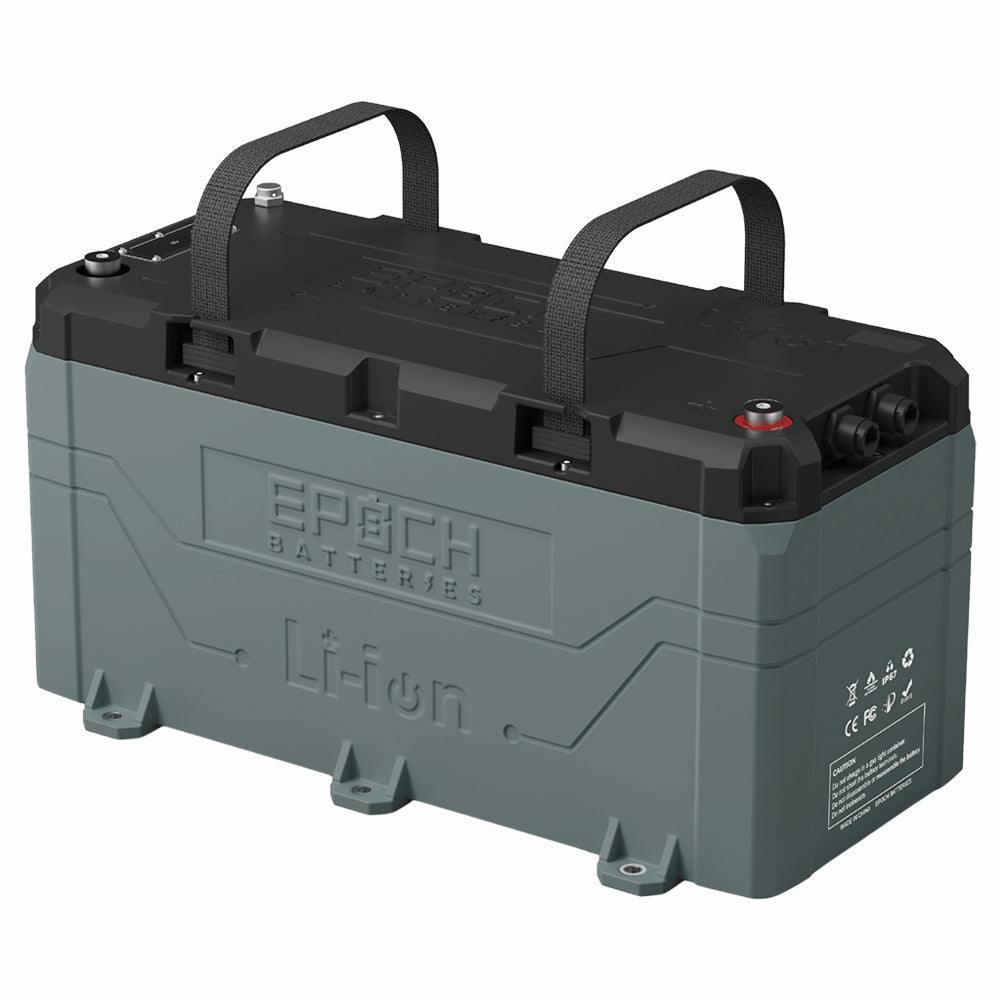

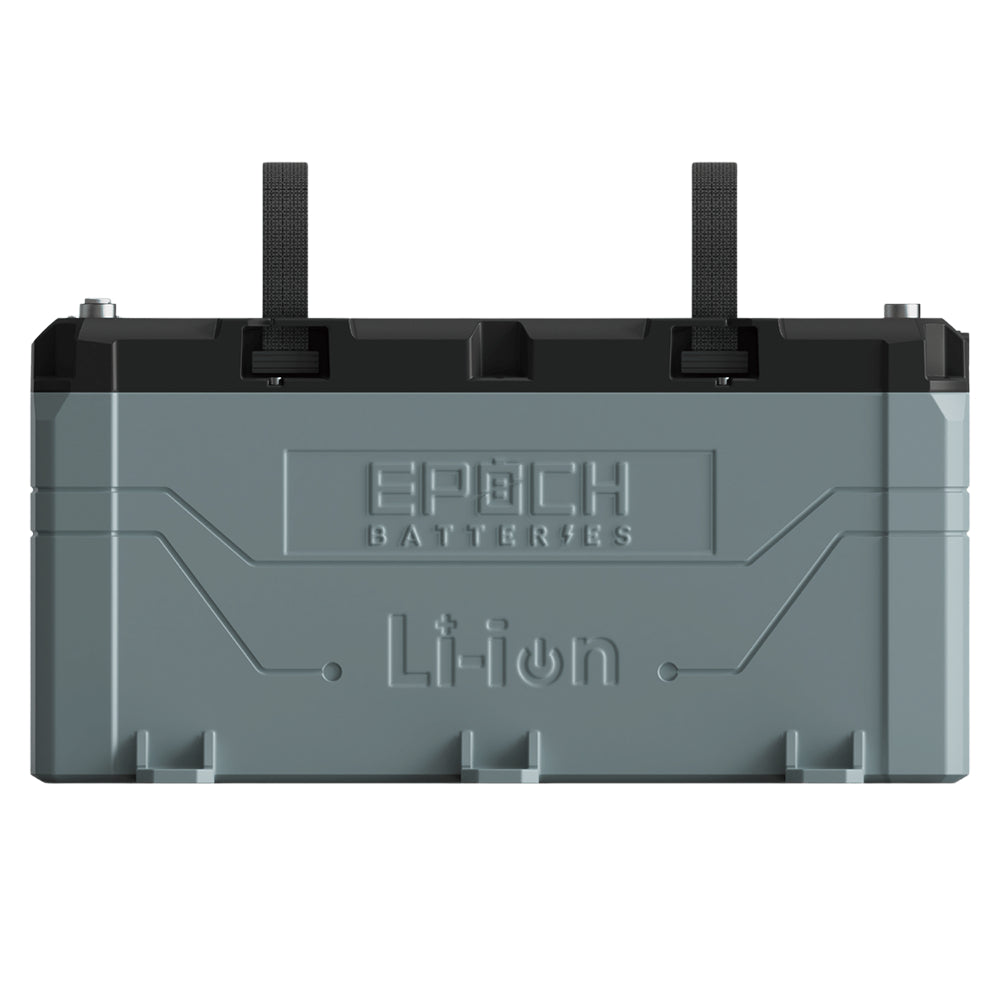

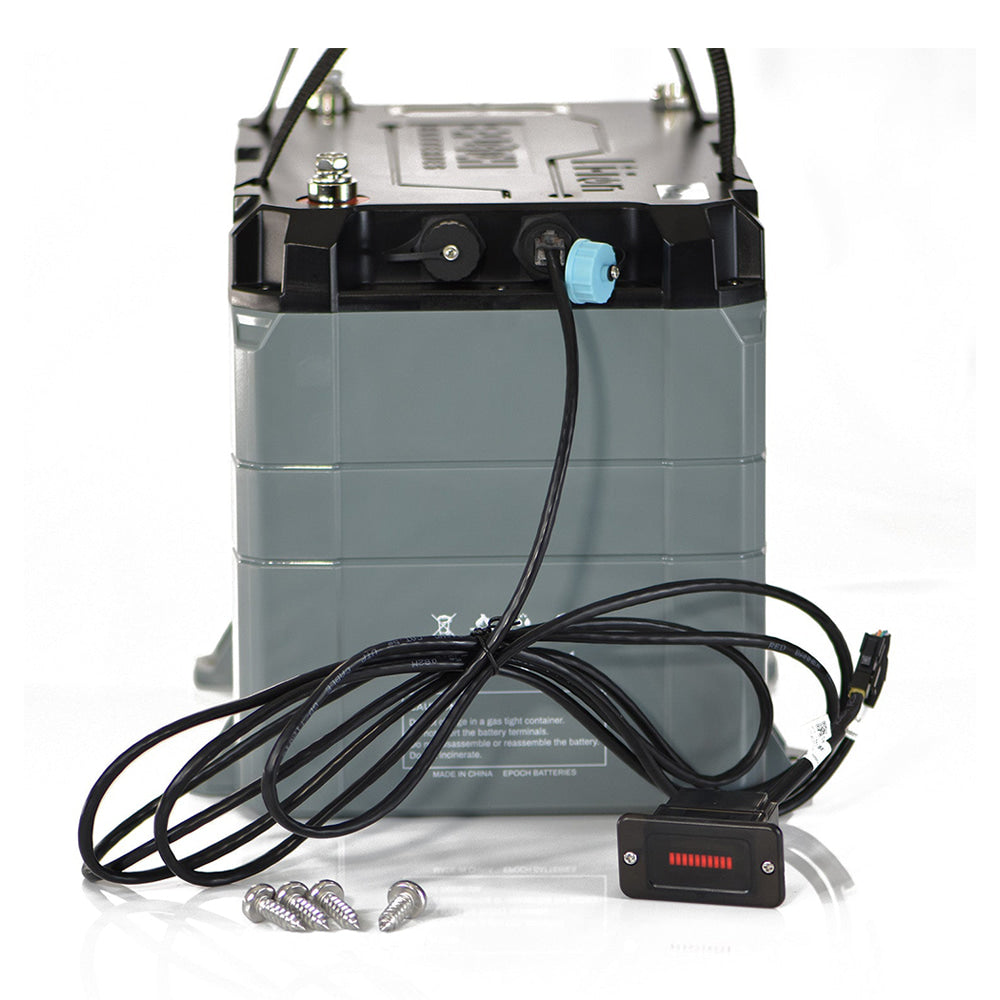

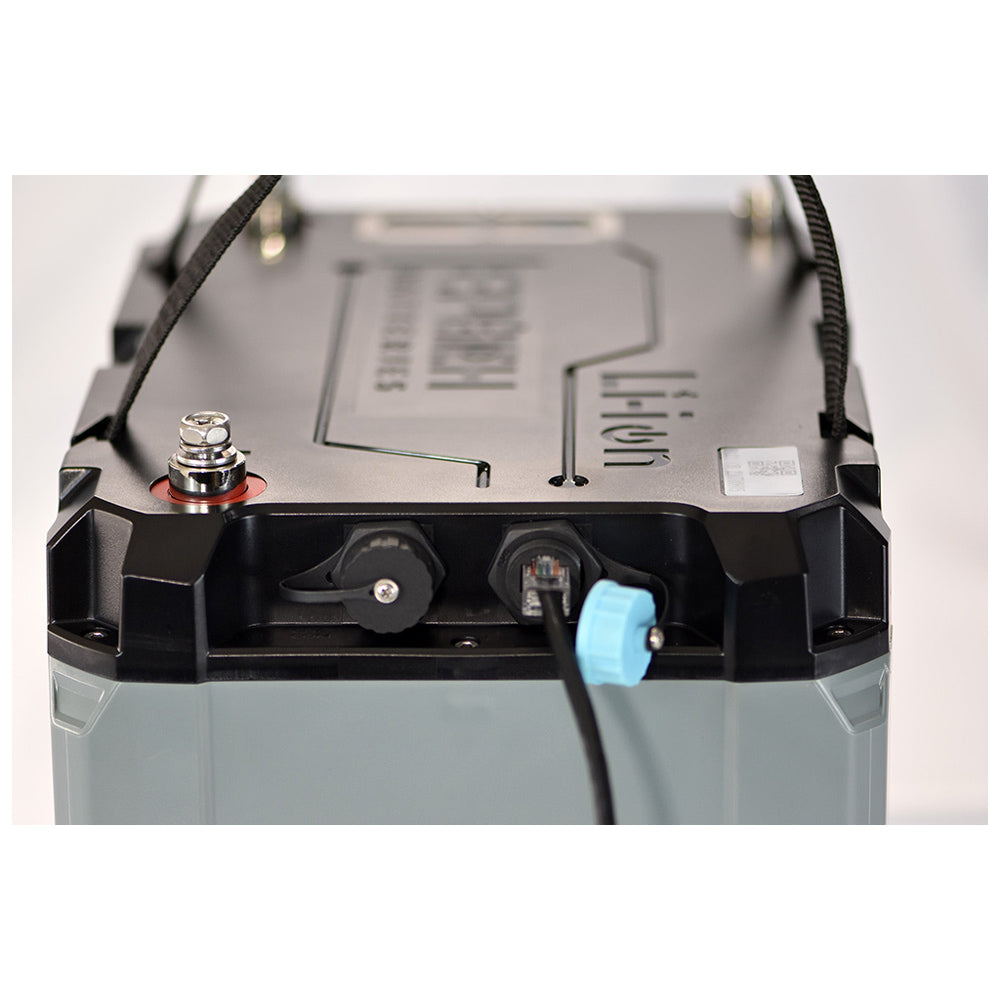

• Qty 1 x 36V 100Ah LiFePO4 Lithium Battery

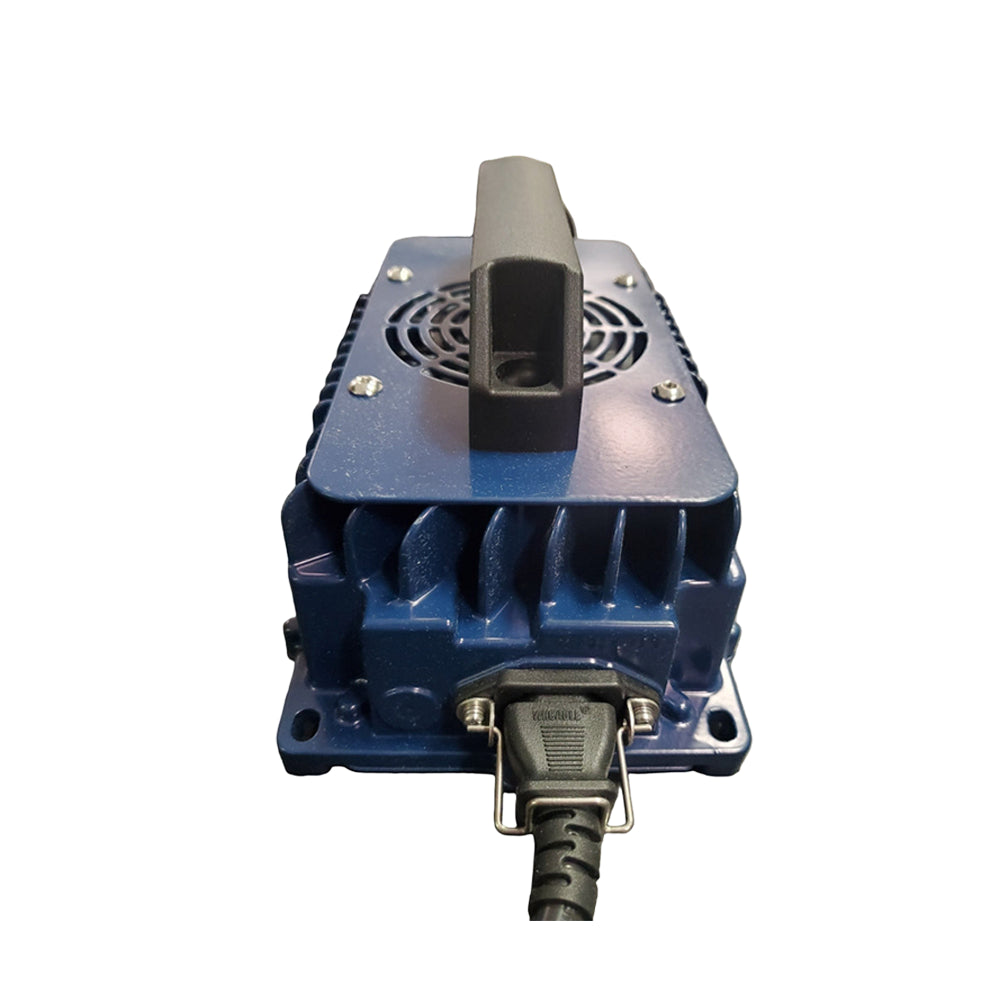

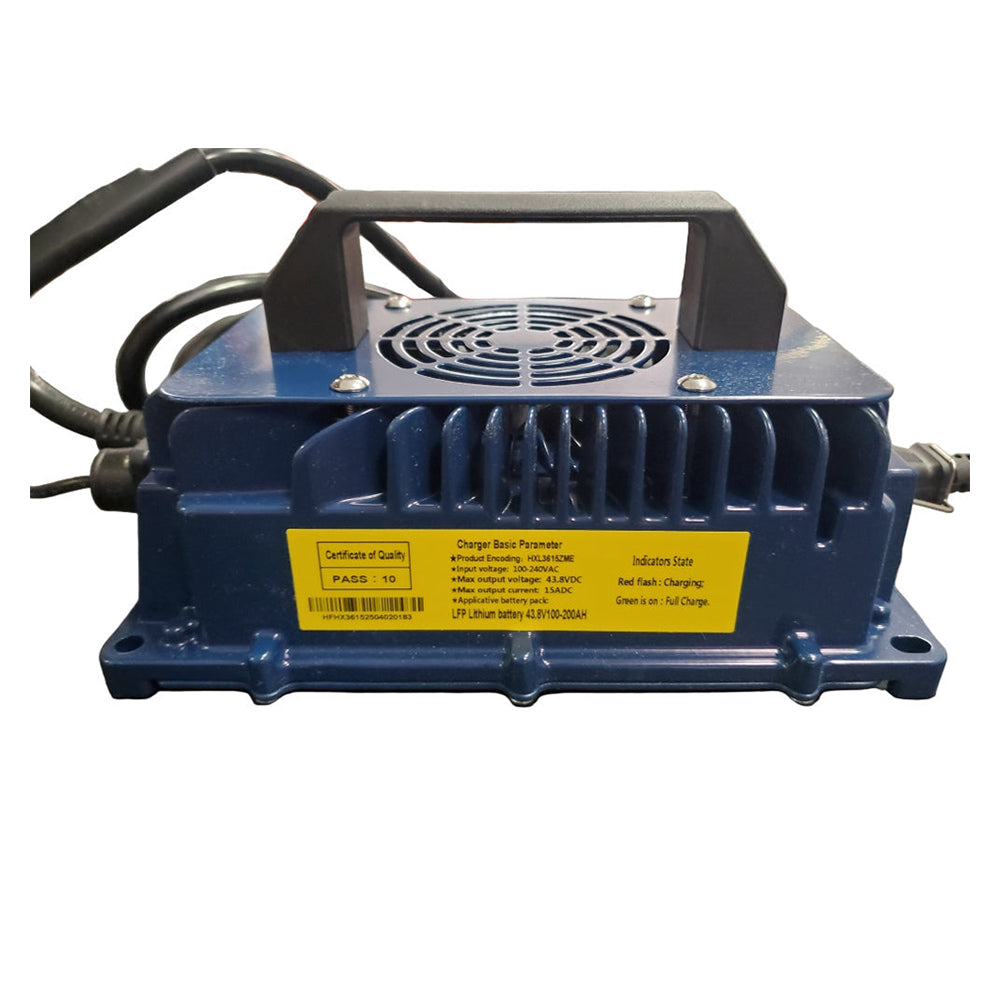

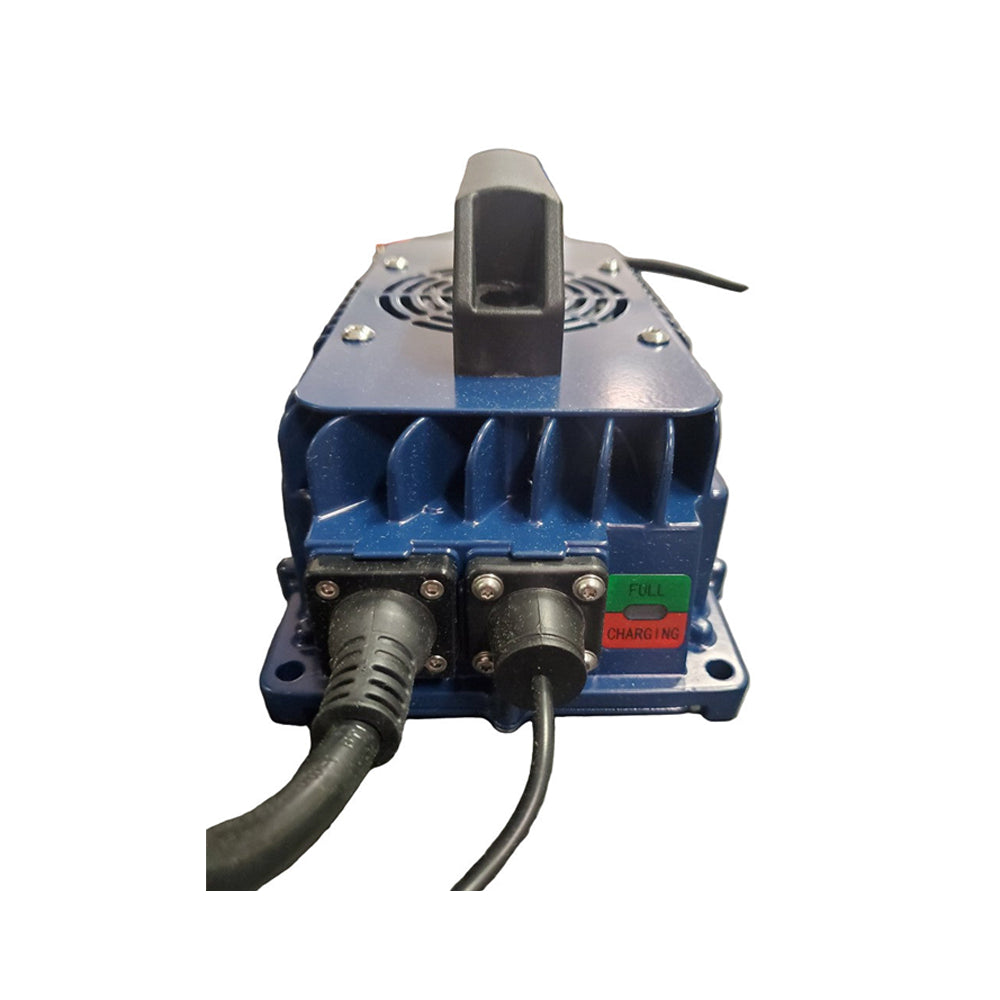

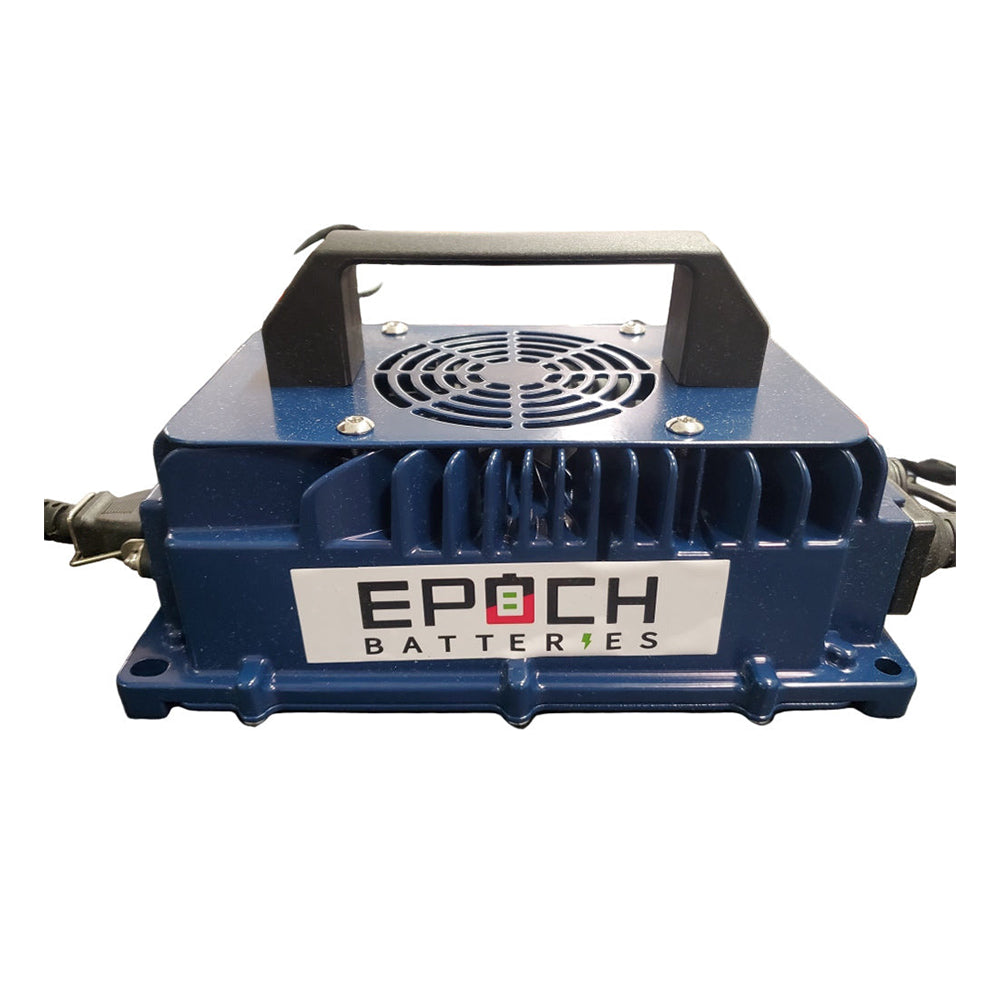

• 36V 15A Battery Charger

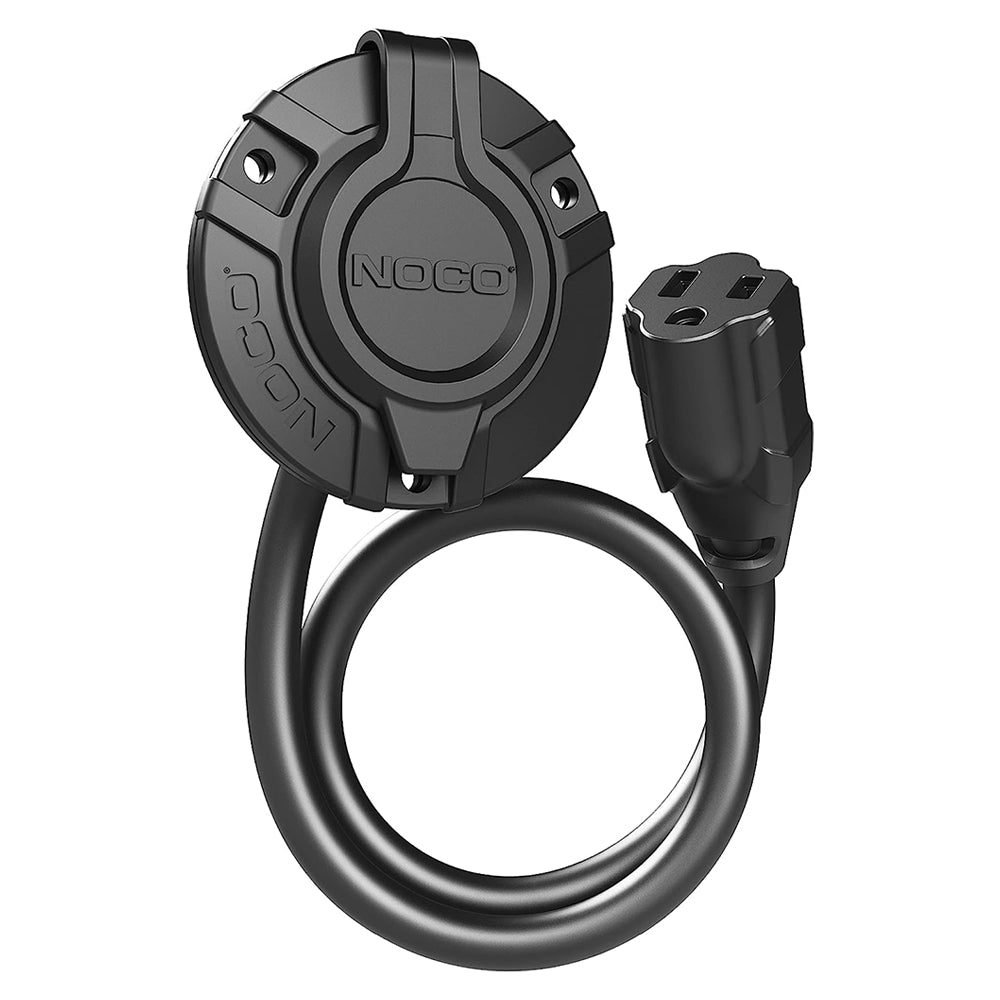

• NOCO GCP1 15A AC Port Plug

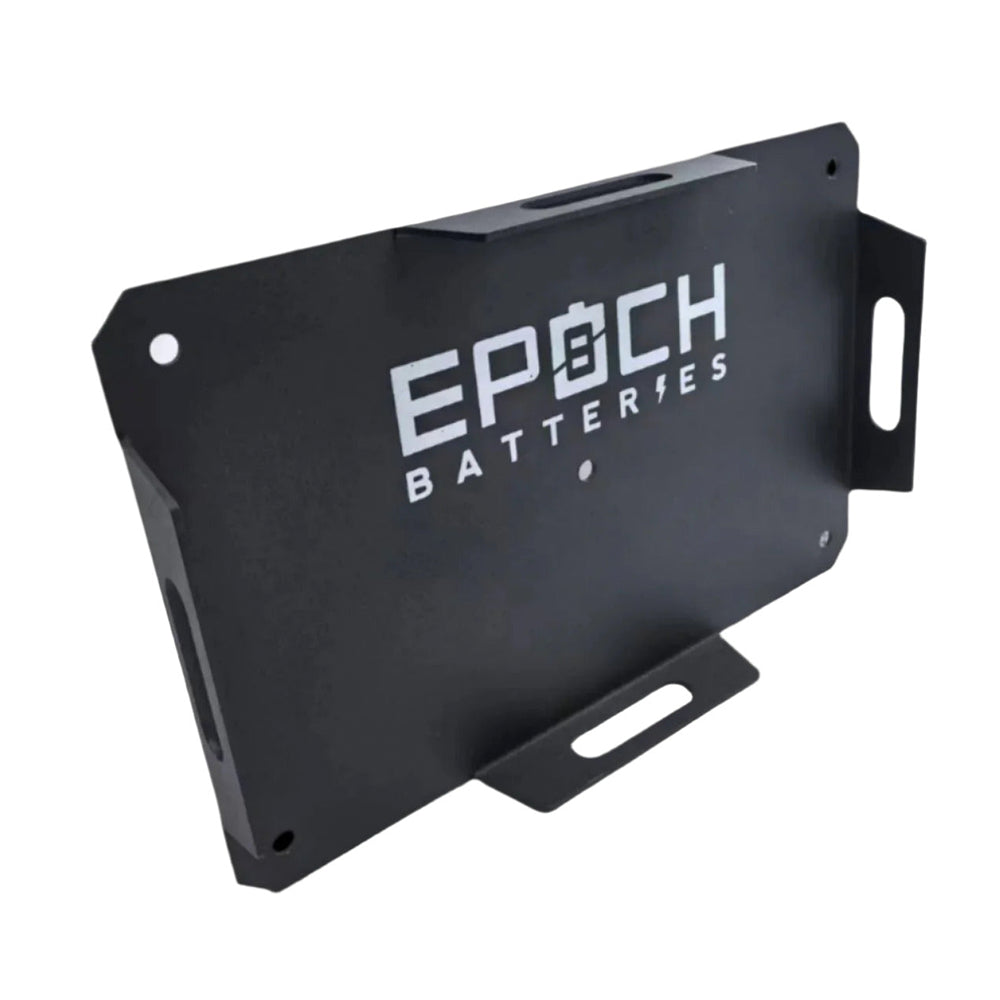

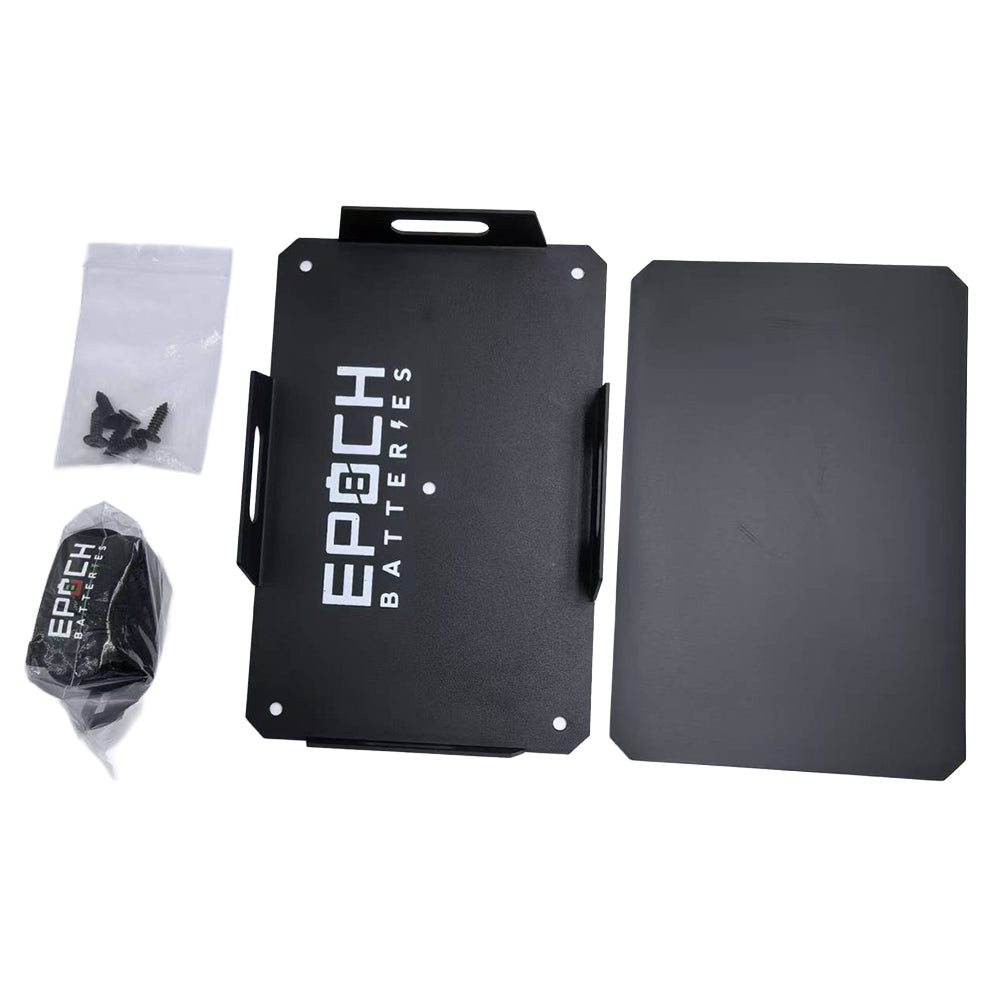

• Battery Tray
• Pro Series – 5″ Touch Screen Display

Specifications

Configuration:

• Cell Configuration: 12S
• Chemistry: LiFePO4

Current:

• Ah Capacity: 100Ah
• Max Continuous Discharge Amps: 120A
• Max Charge Current Amps: 150A (10 Seconds)
• Max Discharge Peak Current Amps: 200A (60 Seconds)
• Series | Parallel: Max (4) in Parallel

Voltage:

• Voltage: 36V
• Max Charge Voltage: 43.8V
• Operating Voltage Range: 30-43.8V

Temperature:

• Charge Temp Range: -20°C (-4°F) / 55°C (131°F) (with heating)
• Discharge Temp Range: -20°C (-4°F) / 60°C (140°F)
• Storage Temp: 0°C (32°F) / 35°C (95°F) (Max 12 Months)

Weight & Dimensions:

• Weight: 75 (LBS)
• Length: 20 (inches)
• Width: 10.25 (inches)
• Height: 11 (inches)

Features

• LiFePO4 Chemistry – Deep Cycle Battery
• HEATED – Internal heating allows for charging in sub-zero conditions

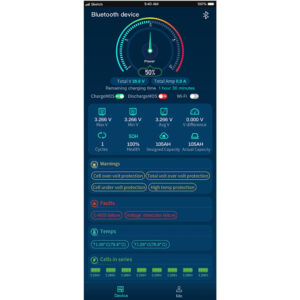

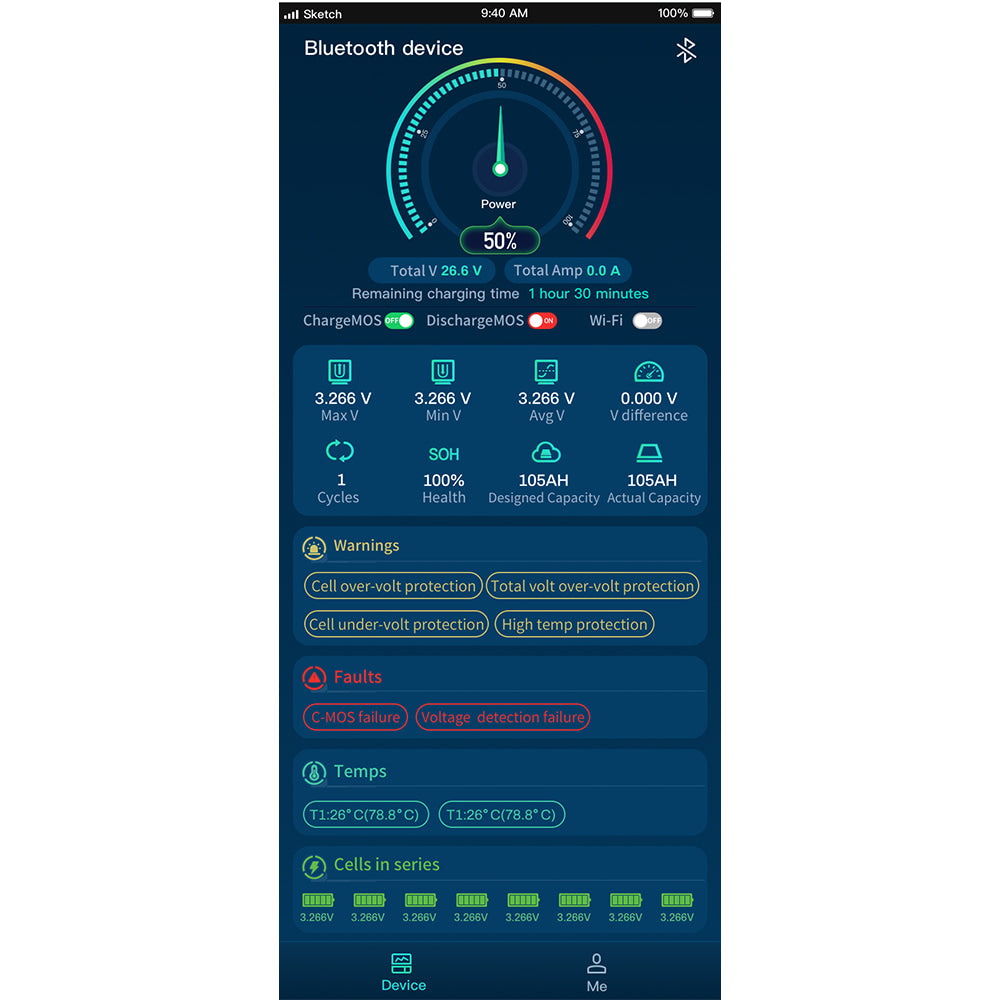

• BLUETOOTH – iOS and Android Apps
• IP67 Rated, Dust and WATERPROOF
• Built-in Smart Battery Management System (BMS)
• Over charge and over discharge protection
• Over current and short circuit protection
• High & low temperature disconnects
• 3500+ Cycle life & Maintenance-free
• 11 Year Manufacturer Warranty

Recommended Charging Settings

To properly charge your Epoch Batteries, you will want to verify that any charging component in your system is capable of being programmed for the following specifications. Charging components can include, but are not limited to converters, inverter chargers, solar charge controllers, DC to DC chargers, etc.

• Bulk/Absorption: 14.2V – 14.6V
• Absorption Time: Two batteries in parallel connections require 30 minutes 200Ah
• Float: 13.4V – 13.8V
• Equalization: 14.4V/ Disabled
• Temperature Compensation: 0/Disabled
• Charge Rate: 50% of the battery or battery bank capacity
• Battery Charge Temperature Range: 32°F (0°C) to 131°F (55°C)
• Battery Discharge Temperature Range: -4°F (-20°C) to 140°F (60°C)
• Cell Charge Temperature: 32°F (0°C) to 131°F (55°C)

NOTE: Not all chargers are capable of multistage charging. If yours is not, you will want to verify it can be programmed for the Bulk/Absorption voltage and have the other items mentioned disabled if applicable. Consult your charger’s manual or the manufacturer.
